BlackBox SKVMCBL-DVI-06 SECURE KVM CABLE, DVI, USB A-B, 3.5MM AUDIO, 1.8M (6FT)

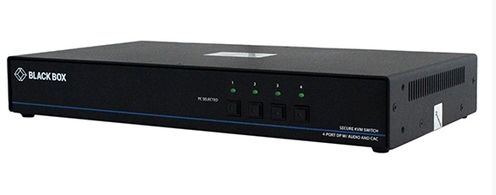

Secure KVM Switch, NIAP 3.0, 4K DisplayPort Single-Head

Control up to four computers from a single user console while ensuring complete information security between systems. This secure KVM switch provides reliable access to multiple computers connected across different networks – ideal for organizations managing sensitive data across separate networks with varying security levels.

Features:

• Tested and certified to NIAP Protection Profile version 3.0
• Supports Windows, Mac, and Linux OS
• 4K Ultra-HD DisplayPort (3840 x 2160 at 30 Hz)
• Secure EDID learning and emulation for compatibility with nearly all monitors
• Supports balanced audio outputs and switching
• Lockable power supply for added security
• Optional CAC interface for configurable device assignment
• TEMPEST options available; please contact our sales team
• Warranty: 3 years Double Diamond™ (Standard)

Key Security Features:

• Each port uses isolated data channels to prevent data flow between secure ports and the external environment.
• Mechanical, electrical, and optical isolation protects against hacking and data leaks.
• Protected firmware prevents unauthorized reprogramming.
• Automatic clearing of keyboard/cache memory before each switch operation.
• Casing with intrusion protection and tamper-proof components.

Technical Specifications:

Certifications: CE, RoHS compliant, UL, TAA compliant

Video:

• Video formats: DisplayPort 1.2
• Maximum Resolution: 4K UHD (3840 x 2160 at 30 Hz)
• Max Pixel Clock: 248 MHz
• DDC: 5 Volt p-p (TTL)
• Data rate: 1.65 Gbps
• Automatic input equalization
• Maximum cable length: 6 m (input and output)

Connections:

• To Computers:
- DisplayPort sockets (2, 4, or 8)
- USB Type B for keyboard/mouse (2, 4, or 8)
- 3.5-mm audio jacks (2, 4, or 8)
- CAC options: USB Type A (2, 4, or 8)

• To User Console:
- DisplayPort socket (1)
- USB Type A for keyboard and mouse (2)
- CAC options: USB Type A (2)
- Audio output: 3.5-mm jack (1)


Operating Conditions:

• Temperature: Operating 0 to +40 °C, Storage -20 to +60 °C
• Relative Humidity: 0 to 80%, non-condensing

Dimensions and Weight:

• 2-Port Models: 224 W x 67 H x 170 D mm, Weight: 1.74 kg
• 4-Port Models: 319 W x 45 H x 170 D mm, Weight: 1.9 kg
• 8-Port Models: 432 W x 45 H x 221 D mm, Weight: 2.85 kg

Power Supply:

• Lockable external power supply, 100–240 VAC, 12 VDC, 3 A, with positive polarity of the center pin
