BlackBox SKVMCBL-DP-06 SECURE KVM CABLE, DP, USB A-B, 3.5MM AUDIO, 1.8M (6FT)

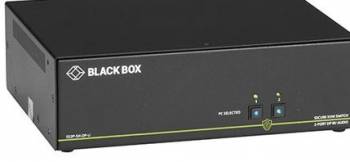

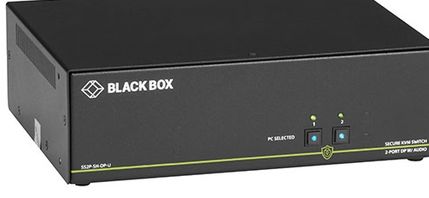

Secure KVM Switch, NIAP 3.0, 4K DisplayPort Single-Head

Control up to four computers from a single user console while ensuring complete information security between systems. This secure KVM switch is an ideal solution for accessing multiple computers across different networks, especially for organizations handling sensitive data across separate networks with varying security levels.

Features:

• Tested and certified to NIAP Protection Profile version 3.0
• Supports Windows, Mac, and Linux OS
• 4K Ultra-HD DisplayPort (3840 x 2160 at 30 Hz)
• Secure EDID learning and emulation for compatibility with nearly all monitors
• Supports balanced speaker audio and audio switching
• Lockable power supply
• Optional CAC interface for configurable device assignment
• TEMPEST options available; contact our sales team for more information
• Warranty: 3 years Double Diamond™ (standard)

Key Security Features:

• Each port uses an isolated data channel to prevent data flow between secure ports and the external environment
• Mechanical, electrical, and optical isolation to guard against hacking and data leaks
• Firmware protection prevents reprogramming or access by intruders
• Automatic cache clearing before each switching operation
• Casing with intrusion protection and tamper-proof components

Technical Specifications:

Certifications: CE, RoHS compliant, UL, TAA compliant

Video:

• Video formats: DisplayPort 1.2
• Maximum Resolution: 4K UHD (3840 x 2160 at 30 Hz)
• Maximum Pixel Clock: 248 MHz
• DDC: 5 Volt p-p (TTL)
• Data rate: 1.65 Gbps
• Automatic input equalization
• Maximum cable length: 6 m (input and output)

Connections:

To Computers:

• DisplayPort: (2), (4), or (8) 20-pin ports
• USB Type B for keyboard/mouse: (2), (4), or (8)
• 3.5-mm audio jacks: (2), (4), or (8)

To User Console:

• DisplayPort: (1) 20-pin port
• USB Type A for keyboard/mouse: (2)
• CAC option: USB Type A (2)
• Audio output: (1) 3.5-mm jack

Operating Conditions:

• Temperature: Operating 0 to +40 °C, Storage -20 to +60 °C
• Relative Humidity: 0 to 80%, non-condensing

Dimensions and Weight:

• 2-Port Models: 224 W x 67 H x 170 D mm, Weight: 1.74 kg
• 4-Port Models: 319 W x 45 H x 170 D mm, Weight: 1.9 kg
• 8-Port Models: 432 W x 45 H x 221 D mm, Weight: 2.85 kg

Power Supply:

• Lockable external adapter, Input: 100–240 VAC, Output: 12 VDC, 3 A
