BlackBox SKVM-BRKT4PSH RACK MOUNT KIT FOR SINGLE HEAD 4 PORT SECURE KVM

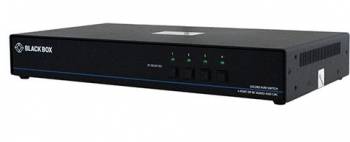

Secure KVM Switch, NIAP 3.0, 4K DisplayPort Single-Head

This secure KVM switch allows control of up to four computers from a single user console while ensuring the highest level of information security. Perfect for organizations managing sensitive data across different networks, this KVM switch prevents accidental data leaks, unauthorized access, and other security threats. The switch is NIAP Protection Profile version 3.0 certified and provides ultra-fast switching for optimal operation.

Key Features:

• Certified to NIAP Protection Profile version 3.0 for maximum security
• Supports 4K UHD DisplayPort (3840 x 2160 at 30 Hz)
• Secure EDID learning and emulation for compatibility with most monitors
• Supports Windows, Mac, and Linux operating systems
• Lockable external power supply for added security
• Advanced and configurable CAC port for specific peripheral assignments
• TEMPEST option available for high-security environments

Technical Specifications:

• Certifications: CE, RoHS compliant, UL, TAA compliant
• Maximum Resolution: 4K UHD (3840 x 2160 at 30 Hz)
• Video Format: DisplayPort 1.2, Pixel Clock up to 248 MHz
• Data rate: 1.65 Gbps
• Automatic input equalization
• Maximum Cable Length:
- Input: up to 6 m
- Output: up to 6 m


Connections:

• To Computers:
- (2), (4), or (8) 20-pin DisplayPort connectors
- (2), (4), or (8) USB Type B for keyboard/mouse
- (2), (4), or (8) 3.5-mm audio jacks
- CAC Option: (2), (4), or (8) USB Type B

• To User Console:
- (1) 20-pin DisplayPort connector for single monitor
- (2) USB Type A for keyboard/mouse
- CAC Option: (2) USB Type A for smart card/biometric readers
- (1) 3.5-mm audio output


Security Features:

• Absolute isolation of data paths to prevent data leaks
• Physical protection features like tamper-proof circuits and holographic seals
• Fixed firmware prevents unauthorized firmware upgrades
• Automatic cache clearing and data destruction before each switch

Operating Conditions:

• Temperature: Operating 0 to +40 °C, Storage -20 to +60 °C
• Relative Humidity: 0 to 80%, non-condensing

Dimensions and Weight:

• 2-Port Models: 224 W x 67 H x 170 D mm, Weight: 1.74 kg
• 4-Port Models: 319 W x 45 H x 170 D mm, Weight: 1.9 kg
• 8-Port Models: 432 W x 45 H x 221 D mm, Weight: 2.85 kg

Power Supply:

• Lockable external adapter
• Input range: 100–240 VAC, 12 VDC output, 3 A, positive center pin

Achieve the highest security standards with the secure KVM switch by Black Box, providing safe access to multiple computers from a central console.
