BlackBox SKVM-BRKT4PDH RACK MOUNT KIT FOR DUAL HEAD 4 PORT SECURE KVM

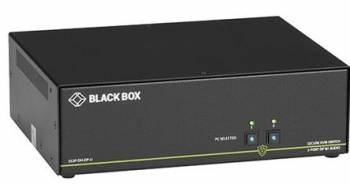

Secure KVM Switch, NIAP 3.0, 4K DisplayPort Dual-Head

The secure KVM switch by Black Box allows control of up to four computers from a single user console, maintaining complete information security. Ideal for organizations managing sensitive data across various networks, this KVM switch prevents data leaks, unauthorized access, and other security threats. It complies with the stringent requirements of the NIAP Protection Profile version 3.0 and provides ultra-fast switching to optimize workflows.

Key Features:

• NIAP certified according to Protection Profile Version 3.0, complying with the highest security standards
• Dual-Head DisplayPort supporting two 4K monitors (3840 x 2160 at 30 Hz)
• Secure EDID learning and emulation function for maximum monitor compatibility
• Supports Windows, Mac, and Linux
• Lockable power supply for increased system security
• Advanced CAC port option for secure peripheral registration
• Tamper-proof protection against physical intrusion
• TEMPEST options available for high-security environments

Technical Specifications:

• Certifications: NIAP PP 3.0, CE, RoHS, UL, TAA compliant
• Maximum Resolution: 4K UHD (3840 x 2160 at 30 Hz)
• Video format: DisplayPort 1.2, Pixel Clock: up to 248 MHz
• DDC: 5 V p-p (TTL)
• Data rate: 1.65 Gbps
• Automatic input equalization
• Maximum cable length:
- Input: up to 6 m
- Output: up to 6 m


Connections:

• To computers:
- (4) or (8) 20-pin DisplayPort connectors
- (2) or (4) USB Type B for keyboard and mouse
- CAC options: (2) or (4) USB Type B
- (2) or (4) 3.5-mm audio jacks

• To the user console:
- (2) 20-pin DisplayPort connectors for dual monitor support
- (2) USB Type A for keyboard/mouse
- CAC options: (2) USB Type A for smartcards and biometric readers
- (1) 3.5-mm audio output


Security Features:

• Absolute data path isolation to prevent data leakage
• Physical protection measures like tamper-proof circuits and holographic seals
• Fixed firmware to prevent reinstallation or access by intruders
• Automatic cache clearing and keyboard data destruction before switching

Operating Conditions:

• Temperature: Operating 0 to +40 °C, Storage -20 to +60 °C
• Relative Humidity: 0 to 80% (non-condensing)

Dimensions and Weight:

• 2-Port Models: 224 W x 67 H x 170 D mm, Weight: 1.74 kg
• 4-Port Models: 319 W x 45 H x 170 D mm, Weight: 1.9 kg

Power Supply:

• Lockable external adapter
• Input range: 100–240 VAC, 12 VDC output, 3 A, positive center pin

This secure KVM switch offers reliable protection and secure data connectivity for organizations that need to secure their IT systems to the highest standard.
