BlackBox SKVM-BRKT2P RACK MOUNT KIT FOR 2 PORT SECURE KVM

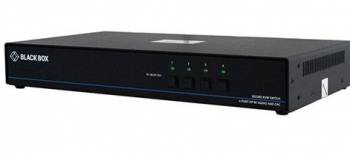

Secure KVM Switch, NIAP 3.0, 4K DisplayPort Single-Head

This secure KVM switch provides an easy, user-friendly way to control up to four computers from a single user console while ensuring complete isolation and security between systems. With certification under NIAP Protection Profile Version 3.0 and advanced security features like tamper-resistant chassis protection, secure EDID learning, and a configurable CAC option, this KVM switch is ideal for organizations that handle sensitive or confidential data across separated networks.

Key Features:

• NIAP 3.0-certified for compliance with high security requirements for peripheral devices.
• Secure EDID learning and emulation for connectivity with a variety of monitors.
• Supports Windows, Mac, and Linux.
• Up to 4K Ultra-HD DisplayPort resolution (3840 x 2160 at 30 Hz).
• Enhanced security with tamper-resistant components and shielding.
• CAC port for supporting smartcard and biometric readers.
• TEMPEST options available for high-security applications.
• 3-year Double Diamond™ warranty.

Technical Specifications:

• Certifications: CE, RoHs, UL, TAA compliant
• Maximum Resolution: 4K UHD 3840 x 2160 at 30 Hz
• Video Format: DisplayPort 1.2
• DDC: 5 V p-p (TTL)
• Maximum Pixel Clock Rate: 248 MHz
• Data Rate: 1.65 Gbps
• Automatic Input EQ
• Maximum Cable Length:
- Input: up to 6 m
- Output: up to 6 m


Connections:

• To Computers:
- DisplayPort Inputs: (2), (4), or (8) 20-pin DisplayPort connectors
- USB Inputs for Keyboard/Mouse: (2), (4), or (8) USB Type B
- Audio Inputs: (2), (4), or (8) 3.5-mm audio jacks
- CAC Ports (optional models): (2), (4), or (8) USB Type B

• To User Console:
- DisplayPort Output: (1) 20-pin DisplayPort connector
- USB Outputs for Keyboard/Mouse: (2) USB Type A
- Audio Output: (1) 3.5-mm audio jack
- CAC Output (optional models): (2) USB Type A


Security Features:

• Tamper-resistant chassis with sealing protection
• Fixed firmware prevents reinstallation or access by intruders
• Clears keyboard data and internal cache before switching
• Isolated data channels for complete separation between secure and unsecure systems

Operating Conditions:

• Temperature: Operating 0 to +40 °C; Storage -20 to +60 °C
• Relative Humidity: 0 to 80% (non-condensing)

Dimensions and Weight:

• 2-Port Models: 224 W x 67 H x 170 D mm, 1.74 kg
• 4-Port Models: 319 W x 45 H x 170 D mm, 1.9 kg
• 8-Port Models: 432 W x 45 H x 221 D mm, 2.85 kg

Power Supply:

• Lockable external power supply
• Input Range: 100 - 240 VAC, 50/60 Hz
• Output: 12 VDC, 3 A (lockable adapter)

This secure and flexible KVM switching solution is ideal for defense agencies, government, finance institutions, and healthcare, where the highest security standards are required.
