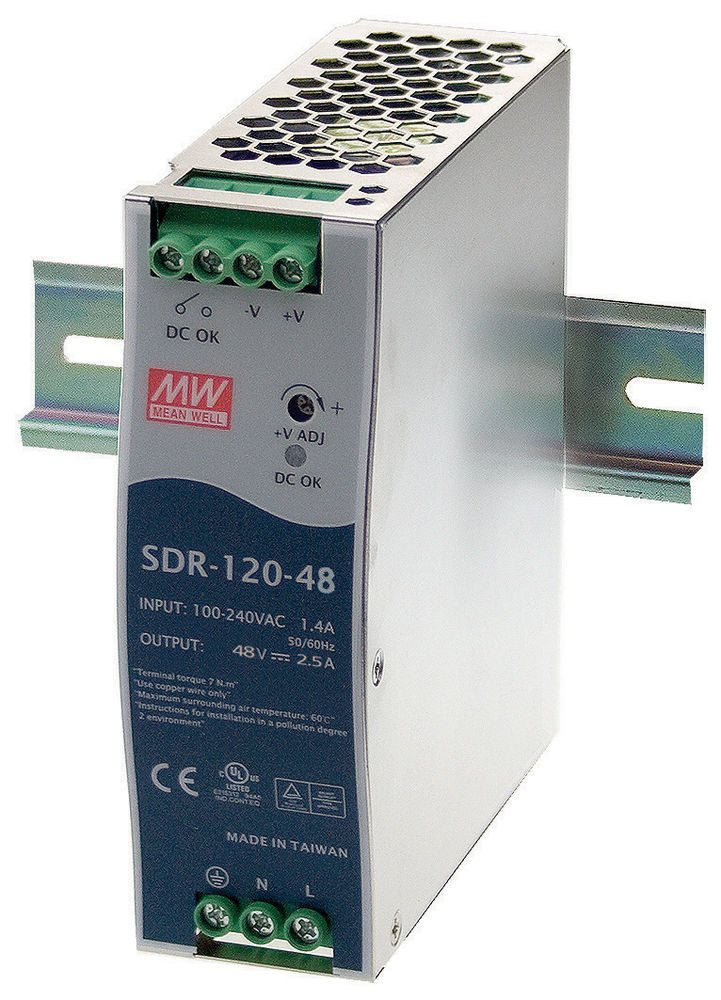

BlackBox SDR-120-48
Power supply for the DIN rail, 120 watts, 48 VDC

Compact power supplies for the DIN rail with a width of less than 4 cm.
Efficiency of 90.5%.
Power Ethernet switches and media converters.
LEDs show the DC current.
Universal 85 to 264VAC inputs. Also work with 120 to 370VDC but without certification.
Extended temperature range from -25 to +70° C.
Touch-safe terminals.
Protection against short circuits, overload and overvoltage.
cUL, CE approval.
Warranty: 1 year, extension possibleDIN-Rail Power Supplies

These slim DIN-rail power supplies offer an efficient and reliable power solution for industrial applications. With a width of less than 4 cm and a high efficiency rating of 90.5%, they are ideal for powering Ethernet switches, media converters, and other devices. Thanks to the universal input voltage (85 to 264 VAC) and robust design, the power supplies operate in a wide temperature range from -25 to +70 °C. Additionally, the units are protected against short circuits, overloads, and overvoltage, and are certified by cUL and CE.

The LED indicator displays the DC power status, and the touch-safe terminals provide extra safety. The compact design and extended temperature range make these power supplies suitable for confined spaces and demanding environments.

Key Features:

• Slim design for DIN-rail mounting (width <4 cm).
• High efficiency of 90.5% for energy-efficient performance.
• Ideal for powering Ethernet switches and media converters.
• LED indicator for DC power status.
• Universal input voltage range: 85 to 264 VAC, also works with 120 to 370 VDC (without certification).
• Wide temperature range from -25 to +70 °C.
• Touch-safe terminals for safe installation.
• Protection against short circuit, overload, and overvoltage.
• Certifications: cUL, CE.

Technical Specifications:

• Environment:
- Operating Temperature: -25 to +70 °C
- Storage Temperature: -40 to 85 °C
- Humidity (Operating): 20 to 90%, non-condensing
- Humidity (Storage): 10 to 95%
- Temperature Coefficient: ±0.03 %/°C (0 to 50 °C)
- Vibration: 10 to 500 Hz, 2G, 10 min./cycle, 60 min. per axis (X, Y, Z), according to IEC60068-2-6

• Power Protection:
- Overload Protection: Automatic recovery after 3 seconds, shutdown in case of overload.
- Overvoltage Protection:
- SDR-120-24: 29-33 V
- SDR-120-48/SDR-240-48: 48-55 V

• Output Current:
- SDR-120-24: DC 24 V, 5 A, 120 W
- SDR-120-48: DC 48 V, 2.5 A, 120 W
- SDR-240-48: DC 48 V, 5 A, 240 W
- Ripple (max.): 100 mVp-p
- Voltage Tolerance: ±1.0%
- Line Regulation: ±1.0%
- Load Regulation: ±1%
- Startup Time: 500 ms at full load
- Hold Time: 50 ms at 230 VAC, 20 ms at 115 VAC

• Input:
- Voltage: 85 to 264 VAC, 120 to 370 VDC
- Frequency Range: 47 to 63 Hz
- Efficiency (typical): 89%
- AC Current: 1.4 A at 115 VAC, 0.7 A at 230 VAC
- Inrush Current: 35 A at 115 VAC, 70 A at 230 VAC
- Leakage Current: <1 mA at 240 VAC

• Dimensions: 12.5 x 4 x 11.3 cm (H x W x D)
• Weight: 0.7 kg

Included Items:

• DIN-rail power supply (model-specific)
• Installation guide

Special Features:

• Compact design for space-saving installation in control cabinets.
• High efficiency and wide temperature range for industrial requirements.
• Certified by cUL and CE for top safety standards.
• 3-year Double Diamond™ warranty for additional protection and reliability.

These power supplies are an ideal choice for industrial applications where space, efficiency, and durability are critical.
