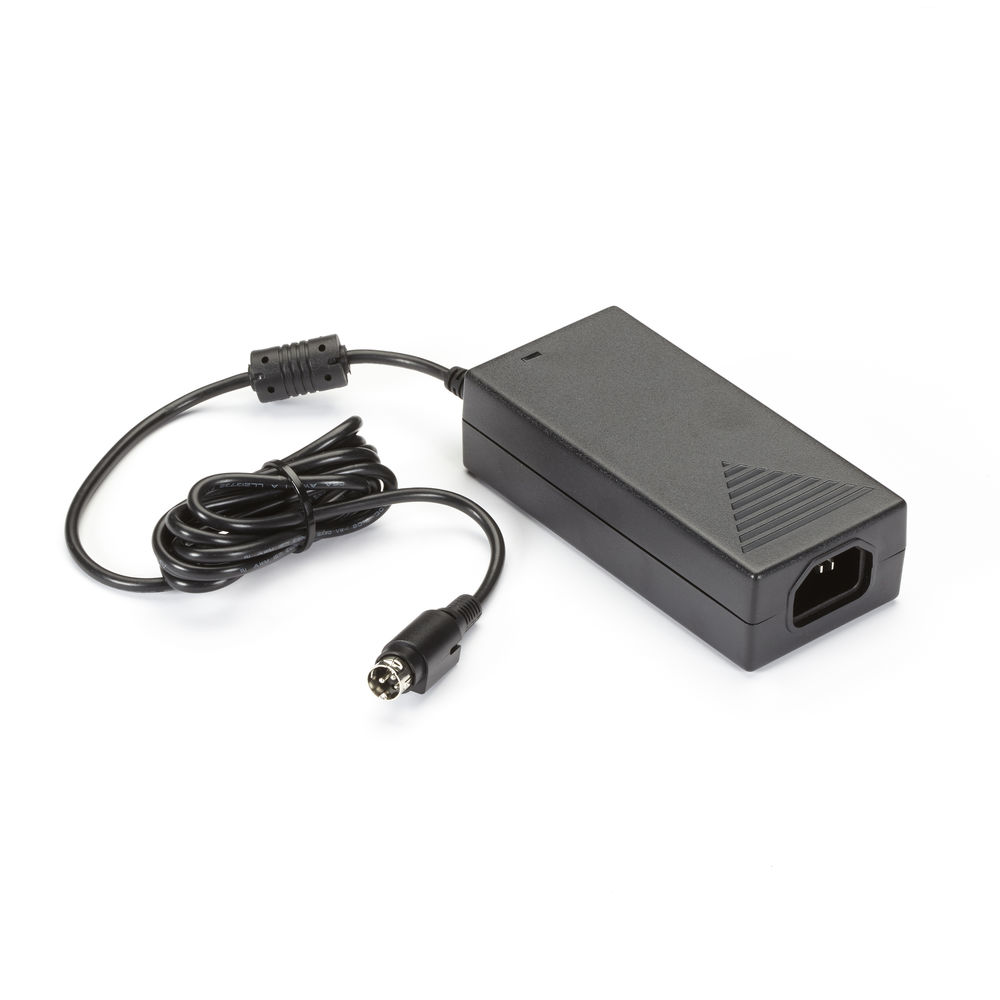

BlackBox PS655 Replacement power supply ACR1000A CTL, 12VDC 5A,

KVXHP Series KVM Extender over CATx/Fiber – Single-Head, 4K DisplayPort, USB 2.0 Hub, Serial, Audio, Local Video

The KVXHP Series KVM Extender delivers reliable, high-resolution 4K video extension for single-head monitors over CATx or fiber cables with point-to-point transmission up to 100 m on CAT cables or up to 4 km on fiber cables. With support for 4K60 DisplayPort 1.2 and True USB 2.0 Emulation, this extender is ideal for demanding control rooms, corporate environments, and industrial applications. Local monitor connectivity on the transmitter side allows video display at both ends, offering additional flexibility.

The extender supports 4096 x 2160 at 60 Hz with 8-bit color depth and 4:4:4 chroma sampling, ensuring true-to-life color accuracy. With EDID management, it guarantees optimal display compatibility. The built-in USB 2.0 hub supports HID devices such as keyboards and mice, and the flexible connectivity allows for both CATx and fiber cabling. For digital and analog audio transmission, the extender has bidirectional audio ports that support high-definition audio quality.

Flexible Media Selection and Expansion Options
KVXHP supports transmission over copper cables up to 100 m and fiber cables up to 4 km (depending on fiber type). SFP modules for fiber connections are available separately. An optional 19-inch rack mount allows for a space-saving installation of multiple units. For larger setups, a Central Power Hub (ACR1000-CPH8R-R2/ACR1000-CPH16R-R2) provides centralized, space-saving power for up to eight or sixteen devices.

Technical Specifications:

• Resolution: 4096 x 2160 at 60 Hz, 8-bit color depth, 4:4:4 chroma sampling
• Distance:
- CAT5e cable: up to 50 m
- CAT6 cable: up to 100 m
- MM fiber cable: up to 300 m
- SM fiber cable: up to 4 km

• USB Compatibility: USB 2.0 for HID devices
• Audio: Digital and analog audio, up to 8 PCM channels (192 kHz for video, 96 kHz for USB)
• Serial Communication: RS232, up to 115 kbit/s with RTS/CTS flow control
• Indicators: 4 tri-color status LEDs
• Power Supply: External, 12 VDC, 18 W
• Operating Temperature: 0 to 40 °C
• Operating Humidity: 0 to 80%, non-condensing
• Storage Temperature: -10 to +50 °C
• TAA Compliant: Yes

Included Items:

• KVXHP Series KVM Extender (model based on selection)
• 12 VDC, 18 W power adapter
• Installation guide

Key Features:

• 4K DisplayPort transmission up to 60 Hz
• CATx and fiber support for flexible installation
• USB 2.0 True Emulation for HID devices
• Integrated USB 2.0 hub
• Intelligent EDID management
• Rack mount option available (KVXHP-RMK)
• Dual and Quad-Head models for multi-monitor applications available

With its robust 4K performance and versatile connectivity options, the KVXHP Series KVM Extender offers a flexible, highly scalable solution for reliable signal transmission over long distances.
