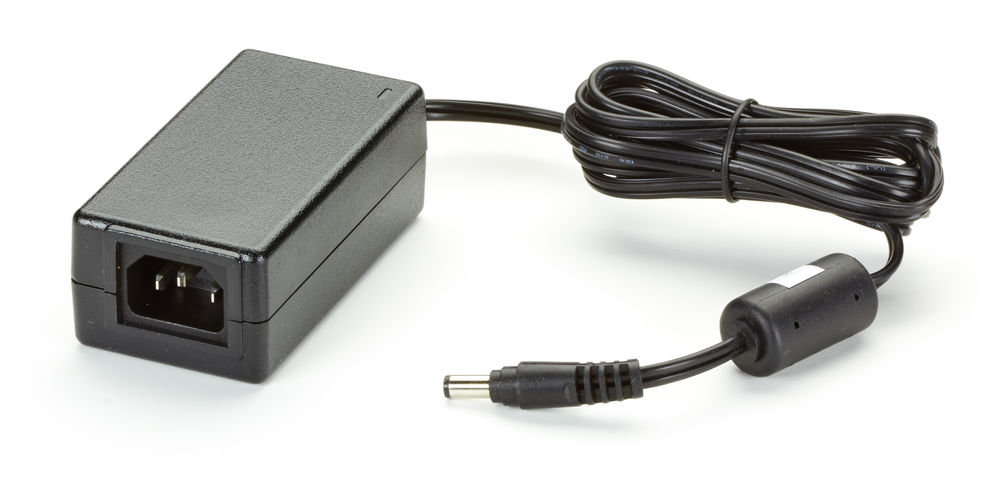

BlackBox PS5001 Wizard Multimedia. Multimedia plus replacement power supply

VGA Extender & Splitter - Wizard MM

Deliver your message through digital signage without compromising on quality or security.

The Wizard MM VGA Extender & Splitter is optimized for the demands of digital signage, providing flexible, cost-effective, and high-quality AV distribution options. These extenders offer crystal-clear transmission of video and audio signals up to 300 meters, making them ideal for retail, waiting rooms, and many other applications. Operating over CatX infrastructure cabling, these units ensure excellent image quality at resolutions of up to 1920 x 1080 (100 m) or 1280 x 1024 (300 m), along with high-fidelity audio reproduction.

With versatile installation and expansion options, this series can be adapted to a variety of settings. Simple yet effective video equalization and skew compensation features allow optimal image adjustments based on distance and cable type, ensuring that your content remains sharp and clear.

Models and Expansion Options:

The series offers several models for different use cases:

• AVU5001A and AVU5111A: Basic model with a single transmitter and receiver for extending up to two remote displays and speakers over a single CatX cable, including support for a local monitor at the source computer.
• AVU5004A and AVU5111A: Advanced models for larger networks, supporting up to four receivers per AVU5004A transmitter. Each receiver module can drive three additional receivers for displays and speakers. With the capability of up to three cascading levels, very large installations are possible.

Technical Specifications:

• Maximum Distance: 300 m
• Maximum Resolutions: 1920x1080 up to 100 m; 1280x1024 up to 300 m
• Cable Compatibility: CATx (x=5,5e,6,7)
• Connectors:
- Transmitters: (2) VGA F (input, output), (2) 3.5-mm audio jacks (input, output), (1) power connector, (1) RJ45 on AVU5001A, (4) on AVU5004A
- Receiver: (2) VGA F, (2) 3.5-mm audio jacks, (1) power connector, (2) RJ45 (input, output)

• Power: 100-240 VAC, 50-60 Hz, external, auto-sensing with IEC connector
• Dimensions: 9.8 x 9.5 x 2.6 cm (L x W x H)

Included Items:

• VGA Extender & Splitter - Wizard MM unit (model variant per selection)
• Power adapter with IEC connector
• Quick-start guide

Key Features:

• Crystal-clear video and audio transmission up to 300 m
• Video equalization and skew compensation for optimal image quality
• Expandable for large network installations
• Flexible adaptation to various AV and signage applications
• Supports up to three cascades per system

With a 3-year Double Diamond™ warranty, the Wizard MM Extender & Splitter ensures reliable performance and top-tier AV quality for any application.
