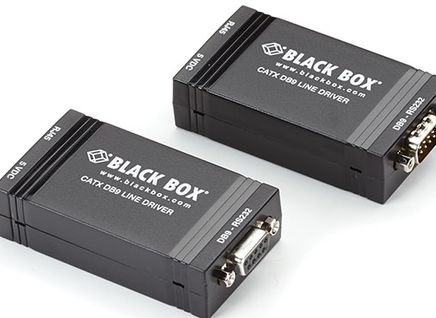

BlackBox ME890AE-R2 RS232 (DB9) LINE DRIVER OVER CATX CABLE W/CONTROL SIGNALS

Asynchronous RS232 Extender over CATx - DB9 with Terminal Block Control Signals, 230V

An affordable plug-and-play solution for controlling RS232/V.24 devices up to 1,200 meters away!

Overcomes RS232/V.24 distance limitations.
Serial control over distances up to 1219 meters.
Full-duplex transmission of data and hardware handshake signals.
Speeds up to 250 Kbps.
Optical isolation.
1000VDC isolation separates the CATx and RS232 interfaces.
Uses cost-effective CATx cable.
Simple plug-and-play installation without setup or configuration.
Pure hardware solution without software conflicts.
Perfect for remotely controlling displays or transferring data between two computers.
Warranty: 1 year Double Diamond™ (Standard).

The RS232 Extender enables you to position RS232/V.24 devices—such as computers, routers, terminals, or recording devices—anywhere up to 1219 meters away, using affordable CATx cable to overcome RS232/V.24 distance limitations.

This pure hardware extender requires no software, thus avoiding compatibility issues. It supports full-duplex transmission including hardware handshake signals (TXD, RXD, RTS, CTS) and is plug-and-play for easy setup.

Ideal for various applications, including remote control of reception area touchscreens, secure server access, or remote presentation control.

Technical Specifications:

Approvals:

• CE, RoHS, UL

Cable Connection:

• CATx

Connectors:

• Transmitter: (1) DB9 Female (DCE), (1) RJ-45, (1) Power Jack
• Receiver: (1) DB9 Male (DTE), (1) RJ-45, (1) Power Jack

Maximum Distance:

• 1219.2 m

Interface:

• RS-232

Operation:

• Asynchronous, full-duplex

Power Supply:

• Input: 100-240 VAC, 47-63 Hz
• Output: 5 VDC with Universal Plug Set, PSE-certified

Max Speed:

• 250 Kbps

Dimensions:

• 2.0 H x 4.3 W x 8.1 D cm

Weight:

• 0.9 kg
