BlackBox MDS968DR-10BT-R2 G.SHDSLBis EtherLink IV DIN rail modem, 8-wire, max. 60Mbps

for DSL (Pin 4.5), 36-72V DC input, Molex power adapter cable incl., VLAN

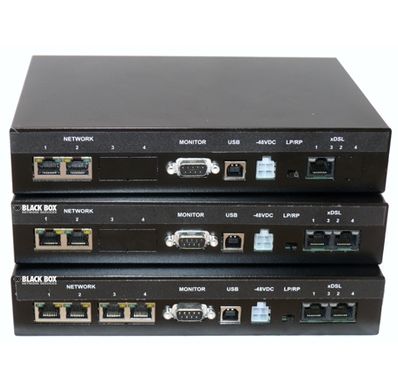

G.SHDSLBis EtherLink IV DIN Rail Modem, 8-wire, max. 60Mbps, USB + RS232 monitoring port, 2x10/100 LAN, 2xRJ45 for DSL (Pin 4.5), 36-72V DC input, Molex power adapter cable incl., VLANEtherLink IV Industrial

Build a metro network with DSL speeds up to 60Mbps.

These DSL modems transmit Ethernet over 2, 4, or 8 simple copper wires.
Transparent connection.
15 Mbps over 2 wires, 30 Mbps over 4 wires, and 60 Mbps over 8 wires.
SNMP management with or without IP (802.3ah).
Built-in Ethernet switch.
Integrated surge protection.
VLAN 802.1q support.
IP30-rated housing, ready for DIN rail mounting.

For campus networks requiring high bandwidth, EtherLink IV Industrial provides a robust and flexible solution. With G.SHDSL.bis technology, the device enables speeds of up to 15 Mbps per copper pair over distances up to 2500 meters. For 4-wire operation, 30 Mbps is possible, and with 8 wires, even up to 60 Mbps. This makes EtherLink IV a suitable alternative to fiber solutions, especially in scenarios where fiber installation may be costly or impractical.

EtherLink IV Industrial supports reliable point-to-point, point-to-multipoint, and multidrop applications and offers a wide range of management features for easy handling and remote diagnostics. The compact, durable IP30-rated housing is designed for DIN rail mounting, making it suitable for industrial environments.

Range:

• 15 Mbps per pair up to:
- 2500 m with 1.0 mm wire
- 2200 m with 0.8 mm wire
- 2000 m with 0.6 mm wire
- 1200 m with 0.4 mm wire
*Values may vary depending on wire quality.


Specifications:


Standards:

• 802.3ah, G.SHDSL.BIS, G.SHDSL, 802.1q, 802.3, 802.3u, ITU-T K20/K21, IEC 1000-4-5 Class 2

Management:

• VT100 (via RS-232), Telnet, HTTP (web-based), SNMP

Ports:

• All models:
- (2) RJ45 Ethernet 10/100BaseTX
- DB9 USB port for monitoring and configuration
- (1) DC power port
- MDS962AE-10BT-R2: (1) RJ45 2-wire (Pin 4&5) for DSL route
- MDS964AE-10BT-R2: (2) RJ45 4-wire (P3&6, 4&5) for DSL route
- MDS968AE-10BT-R2: (2) RJ45 for DSL route (Pin 4,5)


Power Supply:

• 36 to 72V DC, Molex power adapter cable included

Temperature Range:

• Operating temperature: -30 to +75 °C

Enclosure:

• IP30, suitable for DIN rail mounting
