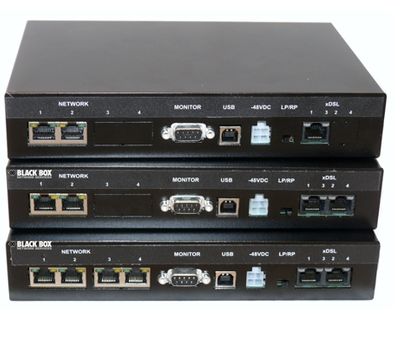

BlackBox MDS962DR-10BT-R2 G.SHDSLBis EtherLink IV DIN rail modem, 2-wire, max. 15Mbps

for DSL (Pin 4.5), 36-72V DC input, Molex power adapter cable incl., VLAN
G.SHDSLBis EtherLink IV DIN Rail Modem, 2-wire, max. 15Mbps, USB + RS232 monitoring port, 2x10/100 LAN, 1xRJ45 for DSL (Pin 4.5), 36-72V DC input, Molex power adapter cable incl., EtherLink IV Industrial

Build a metro network with DSL speeds of up to 60 Mbps.

DSL modems transmit Ethernet over 2, 4, or 8 simple copper wires.
Transparent connection for efficient data transmission.
Data rates: 15 Mbps over 2 wires, 30 Mbps over 4 wires, and 60 Mbps over 8 wires.
SNMP management with or without IP (802.3ah).
Integrated Ethernet switch for seamless connectivity.
Built-in surge protection for enhanced reliability.
VLAN802.1q support for network segmentation.
Robust IP30 housing, DIN rail mountable.

EtherLink IV Industrial provides an excellent solution for campus and metro networks seeking a cost-effective alternative to fiber optic installation. Leveraging G.SHDSL.bis technology, EtherLink IV enables a speed of 15 Mbps per copper pair over distances of up to 2,500 meters. With 8 wires, this allows for impressive speeds of up to 60 Mbps without the need for expensive fiber installations.

EtherLink IV Industrial can make use of existing telephone wires, typically available everywhere, avoiding high installation costs while allowing support for high-bandwidth applications like Voice over IP, Video on Demand, Internet, and more.

Range and Wire Thickness:

• 15 Mbps per pair at distances of up to:
- 2,500 m on 1.0 mm wire
- 2,200 m on 0.8 mm wire
- 2,000 m on 0.6 mm wire
- 1,200 m on 0.4 mm wire
Actual range may vary depending on copper wire quality.

For pre-configuration, please contact our Free Tech Support team.


Technical Details:


Standards:

• 802.3ah, G.SHDSL.BIS, G.SHDSL, 802.1q, 802.3, 802.3u, ITU-T K20/K21, IEC 1000-4-5 Class 2

Management:

• Management options: VT100 (RS-232), Telnet, HTTP (web-based), SNMP

Connections:

• All models feature:
- (2) RJ45 Ethernet 10/100BaseTX
- (1) DB9 (USB) for monitoring and configuration
- (1) DC power connector

• Specific models:
- MDS962AE-10BT-R2: (1) RJ45 for 2-wire DSL route (Pin 4&5)
- MDS964AE-10BT-R2: (1) RJ45 for 4-wire DSL route (Pin 3&6, 4&5)
- MDS968AE-10BT-R2: (2) RJ45 for 8-wire DSL route


Power Supply:

• 36 to 72 V DC, includes Molex power adapter cable

Environment:

• Operating temperature: -30 to +75 °C
• Enclosure: IP30, suitable for DIN rail mounting
