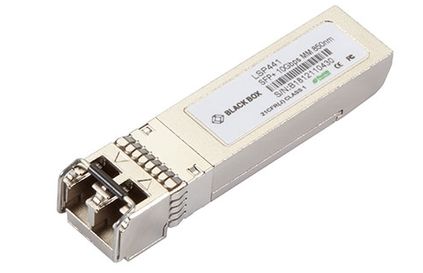

BlackBox LSP441 SFP+ 10GE MM 850NM

SFP+, 10-Gbps

The 10-Gbps SFP+ transceiver offers flexible and reliable data communication, ideal for enterprise and telecommunications applications. This modular and compact design features a durable metal housing that provides robust EMI shielding and excellent ESD protection. The SFP+ transceiver is both interchangeable and hot-swappable, making it ideal for use in managed networks.

Equipped with digital diagnostics and loopback capabilities when used in a managed platform, the transceiver facilitates maintenance by enabling quick identification and troubleshooting of communication issues. Its compliance with MSA SFF-8472 and INF-8077i ensures interoperability with various network devices. It also supports the standard wavelength spectrum as defined by ITU G.694.2.

Key Features:

• SFP+ package with LC connector for versatile connectivity
• Power consumption under 1 W for efficient operation
• LVPECL-compatible data interface and IEC-60825-compliant laser safety standard
• Digital diagnostics and loopback functionality for easy maintenance on managed platforms
• Sturdy metal housing for high EMI and ESD protection
• TAA compliant, supports both multimode and singlemode

Technical Specifications:

Approvals:

• CE, FCC

Connectors:

• Duplex LC

Distance:

• LSP441: 300 m (Multimode)
• LSP442: 20 km (Singlemode)

Speed:

• 10.3 Gbps

Fiber Type:

• LSP441: 50-micron multimode, 850 nm
• LSP442: Singlemode, 1310 nm

Power Supply:

• Input: 3.3 V
• Power consumption: 1 W
• Source: SFP cage

Environmental Conditions:

• Operating temperature: 0 to 70 °C
• Storage temperature: -40 to 85 °C
• Operating humidity: 5 to 85 %, non-condensing

Dimensions:

• 8.5 H x 13.7 W x 55.4 D mm

Weight:

• 0.016 kg

Additional Features:

• Digital diagnostics and loopback capabilities on managed platforms
• Supports standard wavelength spectrum per ITU G.694.2
