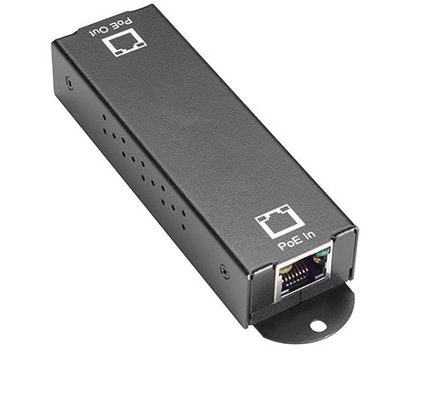

BlackBox LPR1111 GIGABIT POE+ EXTENDER (1) PD IN, (1) POE OUT

10/100/1000BASE-T PoE+ Ethernet Repeater – 802.3at, 1 Port

The 10/100/1000BASE-T PoE+ Ethernet Repeater extends Gigabit data and PoE range up to 600 meters, making it ideal for connecting remote devices such as wireless access points, IP cameras, and VoIP phones. This repeater does not require a separate power source as it forwards both data and power, allowing it to surpass the 100-meter limit of Ethernet CATx connections significantly.

With plug-and-play functionality, autosensing, and autonegotiation, the repeater supports Ethernet speeds of 10/100/1000 Mbps and requires no crossover cable. Up to five repeaters can be cascaded to achieve a maximum range of 600 meters. The repeater is compatible with both 802.3af PoE and 802.3at PoE+, making it an excellent choice for VoIP systems and remote surveillance solutions.

Key Features:

• Extends Gigabit Ethernet and PoE up to 600 meters (using up to 5 repeaters in series)
• Plug-and-play installation with autosensing and autonegotiation
• Supports Ethernet speeds of 10/100/1000 Mbps
• Auto MDI/MDI-X: No crossover cable required
• Compatible with 802.3af and 802.3at PoE devices
• 1-Year Double Diamond™ Warranty

Technical Specifications:

PoE Power Values (Maximum values with staged repeater usage):

• 1 Repeater: up to 200 m, 0.58 A, 42.4 V, 24.592 W
• 2 Repeaters: up to 300 m, 0.53 A, 38.0 V, 17.9 W
• 3 Repeaters: up to 400 m, 0.48 A, 33.7 V, 16.176 W
• 4 Repeaters: up to 500 m, 0.40 A, 31.4 V, 12.56 W
• 5 Repeaters: up to 600 m, 0.28 A, 30.8 V, 8.624 W

Standards and Certifications:

• CE, FCC Class A, RoHS

Connections:

• 2 x RJ-45 ports: 1 x PD (Power Device), 1 x PSE (Power Sourcing Equipment)

Compatible Cable Types:

• CAT5, CAT5e, CAT6 UTP or STP

Data Rate:

• Supports 10/100/1000 Mbps

Power:

• Input: 56 VDC (IEEE 802.3at), max. 30 W input power
• Consumption: max. 2 W

Environmental Conditions:

• Humidity: 10 to 90% (non-condensing)
• Operating Temperature: -10 to +50 °C

Dimensions:

• 2.0 x 3.2 x 12.3 cm (H x W x D)

Weight:

• 0.1 kg

Additional Notes:

• Listed maximum values are based on laboratory conditions with a 56
