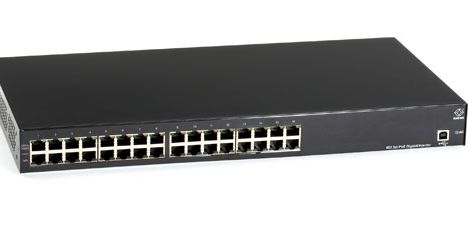

BlackBox LPJ016A-T-R2 AT 16-PORT 10/100/1000 POE INJECTOR

PoE Gigabit Ethernet Injector – 802.3at

The 802.3at-compliant PoE Gigabit Ethernet injector combines power and data over a single Ethernet cable, providing a safe and reliable power source for various PoE+ devices such as access points, security cameras, and VoIP phones. With up to 30 watts per port, this injector enables quick and economical installation of high-speed networks without requiring additional power cabling.

The integrated protection features provide comprehensive protection against overload, surge, overcurrent, and short circuits, while the over-temperature protection with automatic shutdown prevents damage. This PoE injector is backward-compatible with 802.3af devices, making it ideal for enterprise environments where flexible plug-and-play installation and avoiding costly rewiring are essential.

Key Features:

• 802.3at-compliant midspan injector with up to 30 watts per device
• Supports Gigabit Ethernet at 10/100/1000 Mbps for high-speed devices
• Protection features: surge, overcurrent, overload, and short-circuit protection
• Automatic shutdown in case of overheating
• Cost-effective cabling solution: data and power over a single Ethernet cable
• Compatible with 802.3at and 802.3af devices
• Ideal for wireless access points, IP cameras, VoIP phones, and LCD displays
• Diagnostic LEDs for device detection and error indication
• Easy plug-and-play installation

Technical Specifications:

Applications:

• PoE power supply for wireless access points, IP cameras, VoIP phones, and LCD displays

Standards and Certifications:

• CE, RoHS 2, cUL/UL

Speed:

• 10/100/1000 Mbps

Maximum Power Capacity:

• LPJ001A-T-R2: 30 W
• LPJ008A-T-R2: 250 W
• LPJ016A-T-R2: 500 W

Connections:

• Data input: 1, 8, or 16 RJ-45 (10/100/1000 Mbps)
• Data/PoE output: 1, 8, or 16 RJ-45 (10/100/1000 Mbps)

Power Supply:

• Input range: 90–264 VAC, rated voltage: 100–240 VAC, 47–63 Hz
• PoE output voltage: 54–57 VDC (constant under load conditions)

Dimensions:

• LPJ001A-T-R2: 2.8 x 4.6 x 14 cm
• LPJ008A-T-R2, LPJ016A-T-R2: 4.6 x 43.9 x 21.8 cm

Weight:

• LPJ001A-T-R2: 0.2 kg
• LPJ008A-T-R2: 2.7 kg
• LPJ016A-T-R2: 3.2 kg

Environmental Conditions:

• Humidity: 5 to 90% (non-condensing)
• Operating temperature: -10 to +40 °C
• Storage temperature: -20 to +70 °C

Additional Features:

• Diagnostic LEDs for 802.3at device detection and error indication
