BlackBox LPH3100A 10P FAST ETH IND SW POE+

PoE+ Gigabit Ethernet Industrial Switch – Unmanaged, Extreme Temperature

The PoE+ Gigabit Ethernet Industrial Switch is designed to provide reliable power to PoE devices like surveillance cameras, access controls, and wireless access points in harsh environments. Featuring an extended operating temperature range from -40 to +75 °C and an IP30-rated metal enclosure, this switch is ideal for demanding applications in security, building automation, factory automation, oil and gas facilities, and military applications.

Equipped with eight 10/100/1000 PoE+ ports and two Gigabit copper ports, this switch offers versatile connectivity options. It features redundant 12 to 24 VDC power inputs that ensure seamless operation during power outages. Level 3 EMS protection further enhances its durability for outdoor environments.

Key Features:

• Eight 10/100/1000 Mbps PoE+ ports and two Gigabit copper ports
• Operating temperature range of -40 to +75 °C for extreme conditions
• IP30 metal housing with Level 3 EMS protection for outdoor environments
• Redundant 12–24 VDC power inputs for reliability
• 1-Year Double Diamond™ Warranty

Technical Specifications:

Applications:

• Security/Surveillance, Building Automation, Oil/Gas, Military, Industrial

Redundant Power:

• 12–24 VDC with dual protection (reverse polarity and overload protection)

PoE Power:

• IEEE 802.3af/at, PoE/PoE+ with up to 90 W output

Protection Rating:

• EMS Level 3 for extreme outdoor conditions, IP30

Certifications:

• EMI: CE, FCC Class A
• EMS: EN 61000-4-2 to EN 61000-4-8, Shock: IEC 60068-2-27, Vibration: IEC 60068-2-6

Safety Standards:

• UL 60950, IEC/EN 60950, UL61010-2-201 (depending on model)

Data Rate:

• Up to 1000 Mbps

Maximum Range:

• Copper: Up to 100 m
• SFP (depending on model): Up to 110 km

Enclosure:

• IP30 metal housing, suitable for DIN rail and wall mounting

Ports:

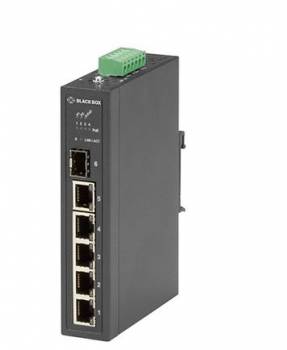

• LPH3061A: (4) 10/100M PoE+ RJ-45, (1) 10/100/1000M RJ-45, (1) 100/1000M SFP
• LPH3100A: (8) 10/100/1000M PoE+ RJ-45, (2) 10/100/1000M RJ-45, (1) 6-pin screw terminal for power and relay

LED Indicators:

• LPH3061A: (3) LEDs for power (P1, P2) and P-Fail, per port (2) LEDs for link and activity
• LPH3100A: (5) LEDs for P1, P2, P-Fail, Loop, PoE; per port LEDs for link, activity, speed, PoE

Power Consumption:

• LPH3061A: max. 2 W
• LPH3100A: 6 W (System), 60 W at 24 V, 50 W at 12 V

Environmental Conditions:

• Operating Temperature: -40 to +75 °C
• Storage Temperature: -40 to +85 °C
• Humidity: 10% to 95%, non-condensing

Dimensions:

• LPH3061A: 14 x 3 x 9.5 cm (H x W x D)
• LPH3100A: 15.2 x 7.4 x 10.5 cm (H x W x D)

Weight:

LPH3100A: 1.148 kg

Included Items:

(1) Industrial Switch

(2) Wall mounting brackets with screws

(1) DIN rail mounting kit with screws

Quick Start Guide
