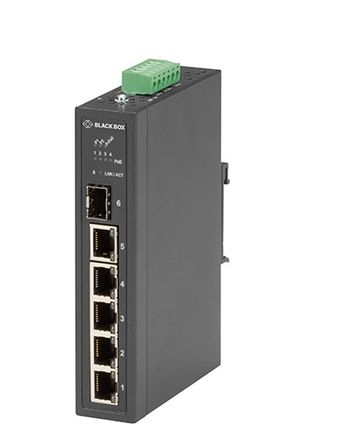

BlackBox LPH3061A 6P FAST ETH IND SW POE+

PoE+ Gigabit Ethernet Industrial Switch – Unmanaged, Extreme Temperature

The PoE+ Gigabit Ethernet Industrial Switch is built to provide reliable power for up to eight PoE devices, including security cameras, access points, or automation equipment in remote, harsh environments. Featuring an extended operating temperature range of -40 to +75 °C and a rugged IP30 enclosure, this switch is ideal for demanding applications such as security, building automation, factory control, and oil and gas installations.

With Level 3 EMS protection and redundant power inputs, this switch ensures reliable operation even in challenging outdoor environments. The redundant 12–24 VDC power input prevents downtime with dual protection (reverse polarity protection and overload protection), ensuring continuous operation.

Key Features:

• Eight PoE+ capable 10/100/1000 Mbps ports and two Gigabit copper ports
• Extended temperature range of -40 to +75 °C
• Level 3 EMS protection for extreme outdoor environments
• Redundant 12–24 VDC power supply
• Rugged IP30 enclosure, suitable for DIN rail or wall mounting
• 1-Year Double Diamond™ Warranty

Technical Specifications:

Applications:

• Security/Surveillance, Building Automation, Oil/Gas, Military, Industrial

Redundant Power Supply:

• 12 to 24 VDC, dual protection mechanism (reverse polarity and overload protection)

PoE:

• IEEE 802.3af/at, PoE/PoE+ with up to 90 W output

EMI/EMS Protection:

• LPH3061A: CE, FCC Class A; EN 61000-4-2 to EN 61000-4-8, IEC 60068-2-27 (Shock), IEC 60068-2-32 (Free Fall), IEC 60068-2-6 (Vibration)
• LPH3100A: EN 55024, EN 61000-6-2, EN 61000-4-2 (ESD), EN 61000-4-5 (Surge), and more

Safety Certifications:

• LPH3061A: UL 60950
• LPH3100A: IEC/EN 60950, UL61010-2-201, e-Mark

Data Rate:

• Up to 1000 Mbps

Maximum Range:

• Copper: Up to 100 m
• SFP: Up to 110 km (depending on SFP module)

Enclosure:

• IP30 metal housing, suitable for DIN rail and wall mounting

Ports:

• LPH3061A: (4) 10/100M RJ-45 PoE+, (1) 10/100/1000M RJ-45, (1) 100/1000M SFP slot
• LPH3100A: (8) 10/100/1000M RJ-45 PoE+, (2) 10/100/1000M RJ-45, (1) 6-pin removable terminal block for power and relay

LED Indicators:

• LPH3061A: Per device: (3) LEDs for P1, P2, P-Fail; Per copper port: (2) LEDs for link speed and activity
• LPH3100A: Per device: (5) LEDs for P1, P2, P-Fail, Loop, PoE; Per port: LEDs for link/activity, speed, and PoE

Power Consumption:

• LPH3061A: Max. 2 W
• LPH3100A: System: 6 W, Power output: 60 W at 24 V, 50 W at 12 V

Operating Temperature:

• -40 to +75 °C

Storage Temperature:

• -40 to +85 °C

Relative Humidity:

• 10% to 95% (non-condensing)

Dimensions:

LPH3061A: 14 x 3 x 9.5 cm

LPH3100A: 15.2 x 7.4 x 10.5 cm

Weight:

LPH3100A: 1.148 kg
