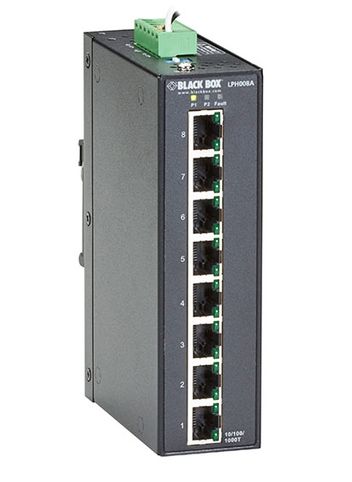

BlackBox LPH008A-R2 HARDENED GIGABIT POE+ SWITCH, 8-PORT

Hardened Gigabit PoE+ 8-Port Switch

This rugged 8-port Gigabit PoE+ switch provides reliable power and network connectivity for devices such as IP cameras, access points, and VoIP phones at remote locations without a local power source. Specially designed for harsh environments, the switch is ideal for industrial applications like oil and gas fields, utility operations, surveillance and security systems, building automation, and SCADA/M2M setups.

The switch supports eight PoE+-capable RJ-45 ports, delivering up to 30 watts per port under IEEE 802.3at standards. Depending on the power input, the switch provides a total power output of 60 watts (at 12–24 VDC) or up to 120 watts (at 24–57 VDC). Two separate DC power inputs ensure redundant operation, preventing interruptions if the primary input fails. With an extended operating temperature range of -40 to +75°C and a robust IP30-rated housing, the switch is suitable for both indoor and outdoor installations. Automatic speed and cable detection, along with jumbo frame support up to 9K bytes, make this switch versatile and efficient for industrial use.

Key Features:

• Eight PoE+ PSE 10/100/1000 Mbps RJ-45 ports, supporting up to 30 watts per port
• Total power output of 60 watts at 12–24 VDC and up to 120 watts at 24–57 VDC
• IEEE 802.3at-compliant, ideal for PoE+ devices such as cameras and access points
• Dual 12–57 VDC power inputs for continuous operation
• IP30-rated housing for rugged industrial environments
• Extended temperature range of -40 to +75°C
• Supports jumbo frames up to 9K bytes and automatic speed/cable detection
• 5-Year Double Diamond™ Warranty

Technical Specifications:

Standards:

• IEEE 802.3 for 10BASE-T
• IEEE 802.3u for 100BASE-TX
• IEEE 802.3ab for 1000BASE-T
• IEEE 802.3x for flow control
• IEEE 802.3at PoE compliant (up to 30 watts per port)

Jumbo Frames:

• Supports up to 9 kBytes

MAC Table:

• 8K MAC addresses

Forwarding Mode:

• Store-and-Forward

User Control:

• (2) DIP switches: Power input-1 failure warning (ON = enable, OFF = disable)

Ports:

• (8) 10/100/1000BASE-T(X) RJ-45 ports with PSE
• (1) 6-pin terminal block for power

Indicator LEDs:

• (19) LEDs: (2) Power (green), (1) Fault (yellow), (8) Link/Act (green), (8) PoE Power (green)

Fault Contact:

• Relay output with 1 A @ 24 VDC capacity

Environmental:

• Operating Temperature: -40 to +75°C
• Relative Humidity: 10 to 90% (non-condensing)

Enclosure:

• IP30-rated

PoE Output:

• 60 watts at 12–24 VDC; 120 watts at 24–57 VDC

Power Input:

• Dual redundant DC inputs, 12 to 57 VDC via 6-pin terminal block
• Typical consumption: 6 watts
• Overvoltage protection: present
• Reverse polarity protection: not present

Dimensions:

• 14.4 H x 4.1 W x 9.5 D cm

Weight:

• Shipping weight: 0.45 kg
