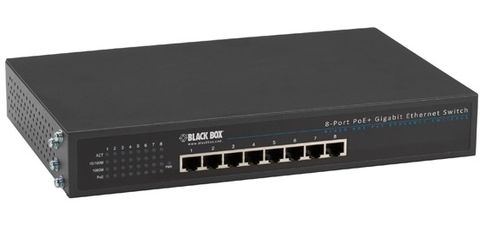

BlackBox LPB1308A-R2 8-PORT 10/100/1000 RJ-45 PSE/POE+ SWITCH

Unmanaged 802.3at PoE+ Gigabit Ethernet Switch

This 802.3at PoE+ Gigabit Ethernet Switch provides a powerful and flexible way to integrate high-power devices directly into your existing 10/100/1000 Ethernet network. It is ideal for connecting VoIP phones, wireless access points, security cameras, and other devices requiring high PoE+ power without the need for additional power supplies.

With its eight shielded PoE+ ports meeting the IEEE 802.3at standard, this switch supplies connected devices with up to 30 watts per port and 200 watts total power for the LPB1308A. The switch automatically detects connected PoE devices, adjusting power supply to ensure reliable, efficient, and safe connections. It is also fully backward-compatible with older 802.3af PoE devices and supports automatic 10/100/1000 detection as well as half/full duplex operation.

The included rack mounting kit makes it easy to install the switch in a rack. Its compact form factor also allows for desktop placement. The switch is fully TAA-compliant and certified for security and EMC, making it versatile and safe in a variety of network environments.

Key Features:

• Adds powerful PoE devices to Gigabit LANs
• Supports high-power VoIP phones, wireless access points, security cameras, terminals, and other PoE+ devices
• Eight shielded 10/100/1000 Mbps PoE+ ports (30 watts per port, 200 watts total)
• IEEE 802.3at standard, backward compatible with IEEE 802.3af PoE
• Powers devices directly via Ethernet cables
• Automatic 10/100/1000 detection, half/full duplex operation
• Includes rack mounting kit

Technical Specifications:

Form Factor:

• Desktop or rack mounting

Cabling Requirements:

• CAT5e/6/7 UTP and STP cables

Indicators:

• (10) LEDs: (1) Power, (1) Uplink, (4) LAN ports, (4) PoE ports

Standards:

• IEEE 802.3 10BASE-T
• IEEE 802.3u 100BASE-T
• IEEE 802.3ab 1000BASE-T
• IEEE 802.3at and IEEE 802.3af Power over Ethernet

Ports:

• (8) 10/100/1000 Mbps RJ-45 PSE/PoE++ ports

Buffer Memory:

• 1.6 MBit

Filtering/Forwarding Rates:

• 10 Mbps port: 14,880 pps
• 100 Mbps port: 148,800 pps
• 1000 Mbps port: 1,488,000 pps

MAC Address Table:

• 4 K

Transmission Method:

• Store-and-Forward

Power Supply:

• Internal AC power supply

Input Power:

• 230 watts max.

Input Voltage:

• 100-240 VAC, 50-60 Hz (internal power supply)

PoE:

• 802.3at, supports up to 30 W per PoE+ port

Dimensions:

• 4.5 x 18.5 x 28 cm (H x W x D)

Weight:

2.3 kg

Operating Temperature:

0 to 55 °C

Humidity:

10% to 90% non-condensing

Certifications:

FCC, CE

TAA-Compliant:

Yes

Included Items:

(1) 802.3at PoE+ Gigabit Ethernet Switch

(1) Power cable

(1) Rack mounting kit with (2) brackets and (2) screws

(4) Rubber feet

Quick Start Guide

User Manual
