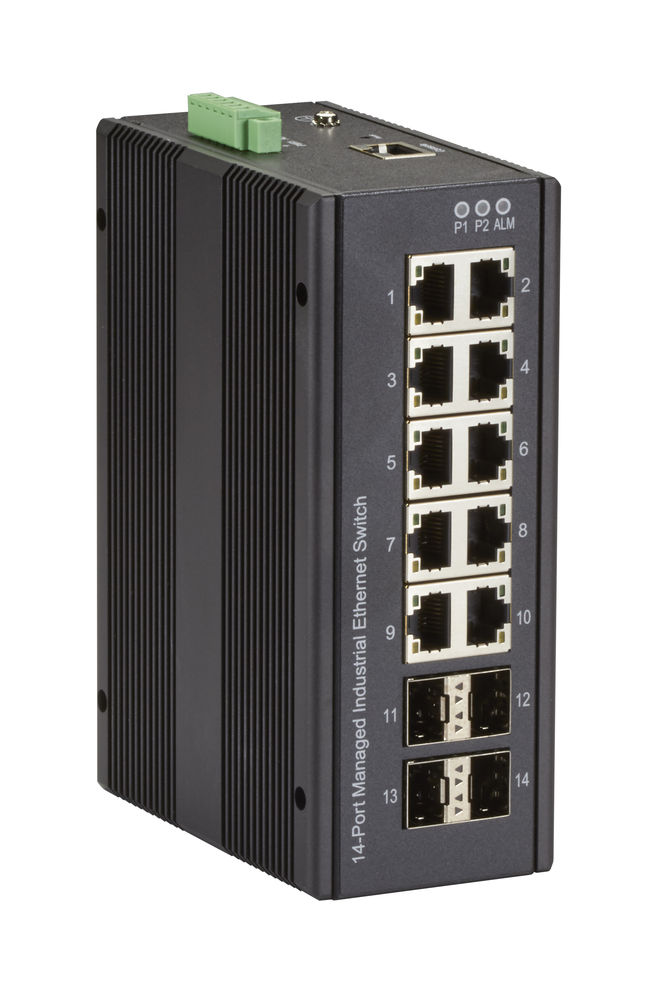

BlackBox LIG1014A INDRY II L, Managed Industrial Network Switch

Your rating:
Average rating
product review for BlackBox LIG1014A INDRY II L, Managed Industrial Network Switch
( 4.5 / 5 ) 284 ratings
BlackBox LIG1014A
This image may differ from the desired article.
891,84 EUR
( 1.061,29 EUR incl. VAT )
≈ £746.47  |  ≈ $980.13
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 18 workdaysinfo_outline
1x BlackBox LIG1014A INDRY II L, Managed Industrial Network Switch
Datasheet:file_download Download
Lieske Part No.:157282
Mfg Part No: LIG1014A
Weight:0.86 kg
Type:INDRY II L
Graduated prices net
From piecesPrice per pieces
3885,15 EUR
6878,46 EUR
9871,77 EUR
12865,08 EUR

Product information for BlackBox LIG1014A:

The BlackBox INDRY II L is a Managed Industrial Network Switch designed for use in demanding industrial environments. It features 14 Gigabit Ethernet ports, consisting of ten 10/100/1000 Mbps copper ports (RJ-45) and four multirate SFP slots that can be used for fiber optic uplinks. The SFP connectors support a flexible combination of 100FX or 1000BaseSX/LX/LH modules, allowing the cabling infrastructure to be adapted according to requirements. The switch is designed for operating temperatures from -40 to +75°C and has undergone rigorous shock and vibration tests to ensure reliability in industrial applications.

Applications

The INDRY II L is designed for use in industrial networks where high availability, robust operating conditions, and flexible adaptability are required. It is suitable for applications such as production facilities, automation systems, power supply networks, or transportation technology, where stable and fast data transmission under extreme environmental conditions is necessary. The dual power supply with 12 to 58 VDC enables integration into various industrial power supply systems.

Functions and Features in Detail

The switch offers comprehensive management via SNMP, Telnet, HTTPS, and CLI, enabling centralized network monitoring and configuration. It supports L2 wire speed switching, meaning data packets are processed at full speed without performance loss. Support for 9000 byte Jumbo Frames increases data transmission efficiency, especially for large data volumes. With 8000 MAC forwarding addresses, the switch can address a large number of devices in the network.

Technology Explained Simply

High redundancy is ensured through LACP (Link Aggregation Control Protocol) and Spanning Tree Protocols (STP/RSTP/MSTP) to prevent network outages and enhance network stability. The link loss recovery time is less than 20 ms, enabling fast reconnection after a failure. Support for VLANs and VLAN mirroring allows flexible network segmentation and monitoring. Quality of Service (QoS) is implemented via 802.1p and TOS/DS with four queues per port, enabling prioritization of critical data streams such as video or voice. IGMP v1/v2 ensures efficient bandwidth usage for video multicast applications.

Compatibility and Accessories

The SFP slots are designed for multirate modules supporting 100FX or 1000BaseSX/LX/LH. These modules can be exchanged according to requirements, allowing flexible adaptation of the network topology. The IP30 protection rating of the housing provides protection against solid foreign objects and splashing water, making it suitable for industrial environments. The housing can be mounted on DIN rails or on a wall.

Mounting and Installation

Mounting is possible either on a DIN rail or on a wall. The dual power supply with 12 to 58 VDC enables flexible integration into existing power supply systems. Installation does not require special tools, as mounting is done using standard fastening elements.

Operational Advantages

The INDRY II L offers high availability and reliability through redundant functions and fast fault response. Support for Jumbo Frames and VLANs improves network efficiency. Comprehensive management functions enable centralized control and monitoring of the network. The flexible SFP module support allows adaptation to changing network conditions without replacing the switch. The IP30 protection rating and robust construction ensure stable operation in industrial environments.

Security

The switch provides security features such as IP, MAC, and IEEE802.1x access control to prevent unauthorized access to the network. Access control can be configured according to requirements to enhance network security.

Warranty

The standard warranty is 1 year; extension is possible. Exact terms are available from the manufacturer.

General
Number of copper ports10
Number of SFP slots4
Port speed copper10/100/1000 Mbps
Port speed SFP100/1000 Mbps
Operation temperature-40 to +75 °C
Operating voltage12 to 58 VDC
Degree of protectionIP30
Management protocolsSNMP, Telnet, HTTPS, CLI
Switching technologyL2 Wire Speed Switching
Jumbo frames9000 Byte
MAC addresses8000
Redundancy functionsLACP, STP/RSTP/MSTP
Link loss recovery time< 20 ms
QoS support802.1p, TOS/DS
Queues per port4
IGMP versionsv1/v2
Access controlIP-, MAC-, IEEE802.1x
Warranty1 year
VLAN supportYes
VLAN MirroringYes


Product data sheet
Datasheet for BlackBox LIG1014A

Questions & answers

What is the delivery time of BlackBox LIG1014A INDRY II L, Managed Industrial Network Switch?

The article BlackBox LIG1014A INDRY II L, Managed Industrial Network Switch is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 18 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of BlackBox LIG1014A to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you BlackBox LIG1014A INDRY II L, Managed Industrial Network Switch always at the best possible price. We can give you a discount of 2% on BlackBox LIG1014A INDRY II L, Managed Industrial Network Switch if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 3 pieces of BlackBox LIG1014A INDRY II L, Managed Industrial Network Switch we can offer you a price of 885,15 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
