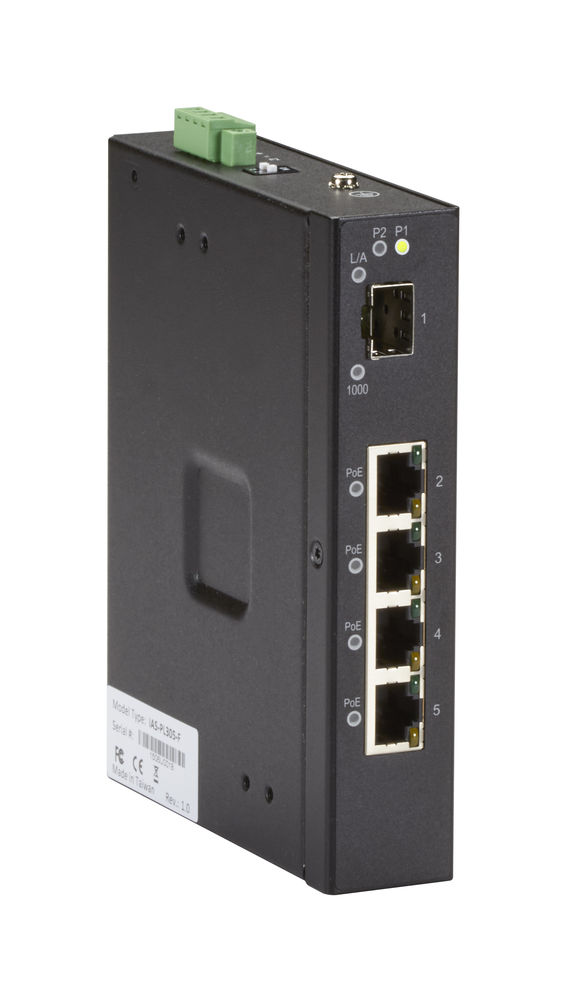

BlackBox LIE401A INDRy II XS, Unmanaged Industrial Network Switch

Your rating:
Average rating
product review for BlackBox LIE401A INDRy II XS, Unmanaged Industrial Network Switch
( 4.6 / 5 ) 192 ratings
BlackBox LIE401A
This image may differ from the desired article.
346,56 EUR
( 412,41 EUR incl. VAT )
≈ £290.07  |  ≈ $380.87
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 18 workdaysinfo_outline
1x BlackBox LIE401A INDRy II XS, Unmanaged Industrial Network Switch
Datasheet:file_download Download
Lieske Part No.:961871
Mfg Part No: LIE401A
Weight:0.65 kg
Type:INDRy II XS
Graduated prices net
From piecesPrice per pieces
4343,96 EUR
8341,36 EUR
12338,76 EUR
16336,16 EUR

Product information for BlackBox LIE401A:

The BlackBox INDRy II XS is a fully managed industrial network switch designed for use in demanding environments. It features eight 10/100/1000-Mbit/s PoE+-copper ports and four multirate SFP slots, making it suitable for both copper and fiber optic connections. The PoE+ function enables power delivery to end devices such as IP cameras or access points via Ethernet cable, with up to 30 W per port. Power supply is provided through two inputs in the range of 12 to 58 VDC, with PoE functionality activated depending on voltage: 802.3af compatibility is available at 48 VDC, while 802.3at is supported at 53–58 VDC. No PoE function is provided at 12 or 24 VDC.

Applications

The switch is designed for industrial applications requiring high reliability and operational safety. It is particularly suitable for use in production facilities, power supply networks, transportation systems, or building automation, where continuous network connectivity under extreme environmental conditions is necessary. The operating temperature ranges from -40 °C to +75 °C, making it suitable for outdoor use or in climatically stressed indoor environments. The protection rating IP30 protects against solid foreign objects larger than 2.5 mm and against splashing water, but not against direct water jets or immersion.

Functions and equipment in detail

The INDRy II XS offers comprehensive management via SNMP, Telnet, HTTPS, and CLI. It supports L2 switching at wire speed and L3 static routing, enabling flexible network architecture. Support for 9K jumbo frames increases data transfer efficiency, especially for large data packets. With 8K MAC addresses in the forwarding table, the switch can address a large number of devices simultaneously. VLAN functionality enables logical segmentation of the network, including VLAN mirroring, which allows network traffic to be copied for monitoring purposes.

Technology explained simply

Network redundancy is ensured by LACP (Link Aggregation Control Protocol) and Spanning Tree Protocols (STP, RSTP, MSTP), enabling fast recovery within less than 20 ms in case of a connection failure. Quality of Service (QoS) is guaranteed through support for 802.1p and TOS/DS with four queues per port, allowing critical data streams to be prioritized. IGMP v1/v2 enables efficient bandwidth usage for multicast traffic, for example, when transmitting video content over the network.

Compatibility and accessories

The switch is compatible with PoE 802.3af and 802.3at, enabling broad use with various PoE-enabled end devices. The SFP slots are designed for multirate modules, allowing both 100-Mbit/s and 1000-Mbit/s connections. Mounting is either on a DIN rail or on the wall, enabling flexible installation in various industrial environments.

Mounting and installation

Mounting is either on DIN rail or on the wall. Installation requires no special tools, as mounting elements are integrated by default. Power supply is provided through two independent inputs, achieving higher availability. The devices are designed for industrial environments and meet the requirements of IEC60068-2-6, -27, and -32 regarding shock, vibration, and free fall. EMC approval according to IEC61000-4-2, -3, -4, -5, -6 (Level 3) ensures reliable operation in electromagnetically stressed environments.

Advantages in operation

The switch offers high operational safety through redundant power supply, fast recovery in case of connection loss, and comprehensive network management. The PoE+ function reduces the need for separate power supplies for end devices, simplifying installation and reducing maintenance costs. Support for VLANs and QoS enables targeted network control to prioritize critical applications. The warranty period is one year, with the option for extension.

General
Number of PoE+ ports8
Number of SFP slots4
PoE standard802.3af/at
Maximum PoE power per port30 W
Operating voltage12 to 58 VDC
Operation temperature-40 to +75 °C
Degree of protectionIP30
Network managementSNMP, Telnet, HTTPS, CLI
Switching technologyL2 wire speed switching
Routing functionL3 static routing
Jumbo frames9K
MAC addresses8K
RedundancyLACP, STP/RSTP/MSTP
Link-loss recovery< 20 ms
VLAN functionsVLAN, VLAN mirroring
QoS support802.1p, TOS/DS, 4 Queues per Port
Multicast supportIGMP v1/v2
Safety functionsIP-, MAC-, IEEE802.1x access control
EMC approvalIEC61000-4-2, -3, -4, -5, -6 (Level 3)
Mechanical load capacityIEC60068-2-6, -27, -32


Product data sheet
Datasheet for BlackBox LIE401A

Questions & answers

What is the delivery time of BlackBox LIE401A INDRy II XS, Unmanaged Industrial Network Switch?

The article BlackBox LIE401A INDRy II XS, Unmanaged Industrial Network Switch is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 18 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of BlackBox LIE401A to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you BlackBox LIE401A INDRy II XS, Unmanaged Industrial Network Switch always at the best possible price. We can give you a discount of 2% on BlackBox LIE401A INDRy II XS, Unmanaged Industrial Network Switch if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of BlackBox LIE401A INDRy II XS, Unmanaged Industrial Network Switch we can offer you a price of 343,96 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
