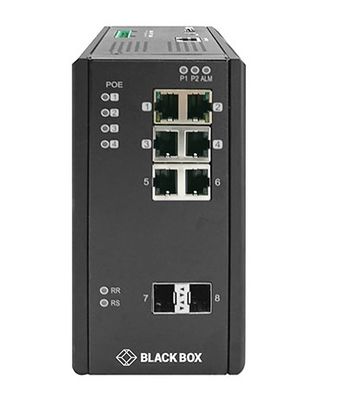

BlackBox LIE1082A 8P IND GIG ETH SW POE+ MAN EXT TEMP

Product Description in English:

The INDRy Series managed L2+ Gigabit Ethernet Switch with PoE+ support is designed for extreme temperature ranges from -40 to +75 °C, making it a robust solution for mission-critical applications in challenging environments. The switch supports both IEEE 802.3af PoE and IEEE 802.3at PoE+, delivering up to 30 W of power per port, ideal for powering IP cameras, access points, and other devices in remote or tough locations.

With comprehensive management capabilities such as LACP, Spanning Tree, and ring protocol, the switch offers enhanced redundancy options, ensuring reliability and network scalability. Management is accessible through a user-friendly web interface, SNMP, or CLI, allowing IT administrators to monitor and control the network remotely.

Models and Ports:

LIE1082A: (4) 10/100/1000 Mbps PoE/PoE+ RJ-45 ports, (2) 10/100/1000 Mbps RJ-45 ports, (2) 100/1000 SFP slots.
LIE1080A: (8) 10/100/1000 Mbps PoE/PoE+ RJ-45 ports.

Technical Specifications:

• Temperature Range: Operating -40 to +75 °C, Storage -40 to +85 °C
• Protection Rating: IP30, shock and vibration resistant
• Power Supply: Dual DC inputs, redundant switchover on failure
• Supported Protocols: LACP, STP/RSTP, VLAN, IGMP Snooping, QoS
• Security Features: 802.1X authentication, IP/MAC-based access management
• Link Loss Recovery: < 20 ms for rapid failover and redundancy
• Dimensions: 15.4 H x 10.9 W x 6.0 D cm
• Weight: 1 kg
• Certifications: CE, RoHS, EN61000-6-2, EN61000-6-4
• Warranty: 1-year Double Diamond™

Included Items:

• Managed PoE+ Gigabit Ethernet Industrial Switch
• (2) Wall mounting brackets
• DIN rail clip
• DC terminal block
• RJ-45 and SFP port covers (model-dependent)
• Quick start guide
