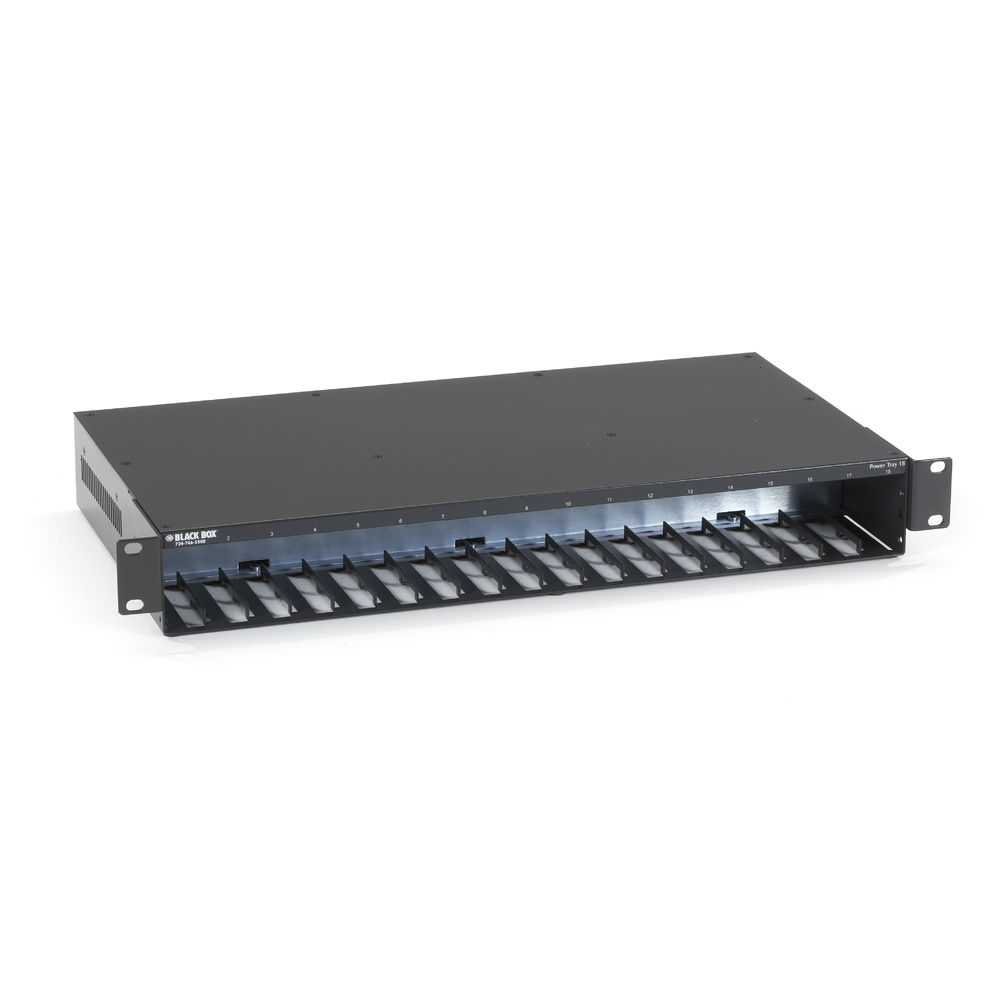

BlackBox LHC018A-AC-R2 18-slot power tray with AC power supply content_copy

The MiC Converter Rack from BlackBox is a modular chassis for housing media converters in network infrastructures. It enables efficient integration of fiber optic connections into existing copper networks, particularly in environments where decentralized distribution of fiber optic lines to workstations is required. The housing is equipped with an internal AC power supply, ensuring consistent power delivery to up to 18 installed converter modules. The compact design with a height of 1.5 U allows space-saving installation in standard 19-inch racks.

Applications

The MiC Converter Rack is designed for networks requiring copper-to-fiber conversion, for example in office buildings, industrial facilities, or when connecting distributed sites. It is particularly suitable for applications where multiple fiber optic connections are consolidated over short or medium distances in a central rack and then routed via copper cables to end devices such as computers or switches. Support for Ethernet speeds of 10/100 Mbps and 1000 Mbps makes it compatible with various network standards.

Functions and Equipment in Detail

The chassis provides space for up to 18 media converter modules, which can be configured as multimode or singlemode fiber optic modules depending on requirements. Single-strand fiber optic converter modules enable particularly compact connections, optimizing installation in tight racks or limited space environments. The integrated power supply ensures reliable energy delivery to all modules, eliminating the need for external power sources or additional power supply modules.

Technology Explained Simply

The converter modules convert signals from copper cables (e.g., Cat5e or Cat6) into fiber optic signals, enabling data transmission over fiber optic lines. This is especially advantageous when high bandwidths or long transmission distances are required. Support for 10/100 Mbps and 1000 Mbps Ethernet allows connection to networks of different performance classes. Development for extended temperature ranges indicates that the device can also be operated in environments with higher or lower ambient temperatures, making it suitable for industrial or outdoor installations.

Compatibility and Accessories

The MiC Converter Rack is designed for use with various media converter modules from BlackBox, available in multimode or singlemode variants. The modules are manufactured in a standardized format, allowing them to be easily inserted into the chassis. Compatibility with various fiber optic standards enables flexible adaptation to existing network infrastructures.

Mounting and Installation

The chassis is mounted in standard 19-inch racks and requires no additional power supplies. Mounting is done using the included mounting hardware, designed for rack installation. The power cable enables connection to an AC socket. Installation of the converter modules is done by simply inserting them into the designated slots in the chassis.

Advantages in Operation

By integrating up to 18 modules in a housing with only 1.5 U height, significant rack space is saved. The internal power supply reduces the number of external power supplies and simplifies cabling. Support for various fiber optic and Ethernet standards enables flexible use in different network environments. Development for extended temperature ranges increases operational reliability in critical applications.

The delivery includes the MiC Converter Rack chassis, a user manual, a power cable, and mounting hardware for installation in the rack.

General
Model	MiC Converter Rack
Capacity	up to 18 media converter modules
Height	1,5 HE
Fibre optic options	Multimode or Singlemode
Network connection	10/100 Mbps or 1000 Mbps Ethernet
Current supply	Internal AC power supply
Temperature range	Designed for extended temperature operation

---
