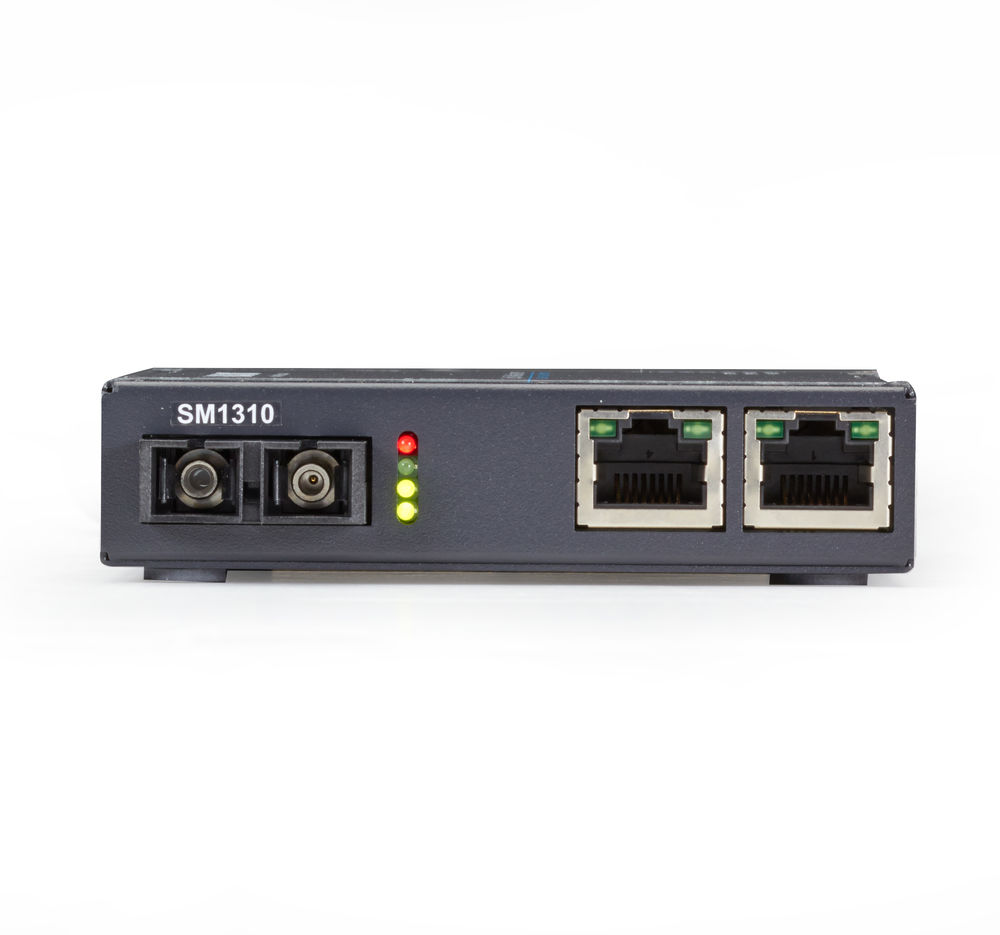

BlackBox LGC5212A
PSE compact media converter, PoE+ 10/100/1000 to 1310nm SM SC, 15km

Gigabit PoE+/PSE Media Converter

Connect with fiber and provide power to remote PoE+ devices.

Features two 10-/100-/1000-Mbps copper ports and one fiber port.
Both UTP ports are autosensing with Auto MDI/MDI-X; both UTP ports support 802.3at PoE+.
Acts as power sourcing equipment (PSE) on the copper side to power PoE+ devices.
Features an extended temperature range when used with DC terminal-block power.
Rugged metal chassis.
Warranty: 6-Year Double Diamond™ (Standard)

This tough media converter is the ideal way to extend your network over fiber while powering PoE+ devices. It’s perfect for linking to remote PoE+ devices like IP security cameras, wireless access points, and VoIP phones.

Fiber Options:

All models of the Gigabit PoE+ PSE Media Converters feature two autosensing 10/100/1000 UTP ports. On the fiber side, choose between:

• LGC5211A: Multimode fiber port for connections up to 550 meters.
• LGC5212A: Single-mode fiber port for connections up to 15 kilometers.
• LGC5210A: SFP slot customizable to multimode fiber, single-mode fiber, or Gigabit copper via a standard SFP.

Power over Ethernet:

Both UTP ports support 802.3at Power over Ethernet Plus, allowing the converter to power a PoE+ PD device.

Power Options:

The Gigabit PoE Media Converter can be powered three ways: from an AC power supply (LGC5210-PS included), via the DC power jack, or the DC terminal block. With DC power to the terminal block, it supports an extended operating temperature range of 0 to +70 °C.

Only one power source is needed to power both the converter and a PoE+ device. Position the PoE+ device up to 100 meters (328 feet) from the converter, enabling flexible placement of wireless APs and security cameras. A pair of input and output terminals allows DC power cascading in a DIN rail installation (optional DIN Rail Clip (LXC-DR) sold separately).

Connectors:

• Copper side: (2) RJ-45
• LGC5210A: Fiber side: (1) SFP
• LGC5211A/LGC5212A: Fiber side: (1) pair of SC

Ethernet Connection:

• 10/100/1000BaseT
• Auto Negotiation
• AutoCross
• Flow Control
• MTU 10240
• Full Line-Rate Forwarding

Power:

• AC Desktop Adapter (LGC5210-PS included): Input: 100 to 240 ±10% VAC, 50/60Hz, 2A; Output: 52 VDC, 2.31A
• DC input: 51 to 57 VDC on DC terminal block, 51 to 57 VDC on DC jack
• Power consumption: 65W max (PSE + PD), 5W max (PSE)

Dimensions:

• 2H x 9.2W x 9.7D cm (0.8H x 9,1 cm ( 3,6 inch )W x 3.8D)

Environmental:

• Operating temperature: 0 to +70 °C (DC terminal block); 0 to +50 °C (AC adapter)
• Operating humidity: 5 to 95% noncondensing

Standard Compliance:

• IEEE 802.3af Power Over Ethernet
• IEEE 802.3at PoE+ Standards
• IEEE 802.3 Ethernet Standards
• IEEE 802.3u Auto-Negotiation
• RFC-2474
• RFC-2475 DiffServ QoS
