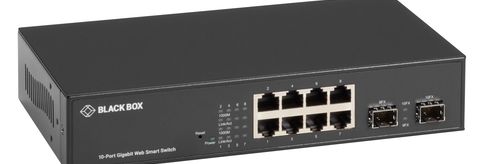

BlackBox LGB710A GIGABIT WEB SMART SWITCH 10 PORT US INTL

LGB700 Series Web-Smart Gigabit Ethernet Switch - SFP, 10-Port

Connect up to 10 Gigabit Ethernet, Fast Ethernet, or Ethernet devices.

Provides (8) 10/100/1000 Mbps UTP ports, plus (2) SFP ports supporting fiber speeds of 100/1000 Mbps.
Supports IEEE 802.3az Energy-Efficient Ethernet to reduce power costs.
Configure and manage the switch through your web browser.
Configurable QoS parameters for traffic prioritization and management.
Includes two SFP ports for 100/1000 Mbps Ethernet uplinks with an optional SFP transceiver.
Web-Smart functions simplify manageability, security, QoS, and performance.
Improved QoS support for real-time applications.
Fanless for quiet operation, with fewer moving parts and lower failure risk.
Reduces power usage by disabling unused ports.
Port mirroring allows for isolating network faults without interrupting data flow.
Supports both port- and tag-based VLAN.
Auto-sensing ports with duplex auto-negotiation.
Supports loop detection for maintenance purposes.

Expand your office network intelligently with the eco-friendly LGB700 Series Web-Smart Switch. This compact, fanless 10-port switch is ideal for connecting Ethernet devices with the flexibility to add fiber-based Gigabit Ethernet on two SFP ports. The Web-Smart features allow for simple configuration and monitoring through your web browser, making it ideal for office and workgroup use.

Web-Based Management:

Easily access configuration and monitoring through your browser. The switch also supports SNMP V1/V2c for advanced network management. QoS, port mirroring, and VLAN options are available for enhanced control.

Fiber Connectivity:

The SFP ports offer flexible fiber connections, compatible with both multimode and singlemode SFP transceivers, which are hot-swappable.

Real-Time QoS Support:

This switch supports Layer 2 802.1p priority queuing as well as Layer 4 TCP/UDP port and ToS classification for prioritizing VoIP and other real-time applications.

Port Mirroring:

For monitoring and troubleshooting, traffic can be mirrored from one port to another, allowing you to analyze network performance without disrupting data flow.

Advanced VLAN Support:

The switch offers VLAN for enhanced security, allowing for traffic segmentation between different user groups. IGMP Snooping limits bandwidth-intensive multicast traffic to requesters.

Additional Technical Details:

Approvals:
- CE, RoHS, EN 55022:2010 Class A, IEC 61000-3-2:2005 + A1:2008 + A2:2009, IEC 61000-3-3:2008, FCC Part 15 B & C ISPR22, Class A
- Council Directives: 2004/108/EC, 2006/95/EC, 2011/65/EU

Ports:

- Ethernet: (8) RJ-45, (2) SFP slots

Switching Capacity:

- 20 Gbps

Forwarding Rate:

- 1.488 Mpps

Jumbo Frames:

- Up to 9.6 KB

Packet Buffers:

- 512 KB

MAC Addresses:

- 8K

Management:

- HTTP via embedded web server

Standards:

- IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3az, 802.1Q, 802.1p, 802.3ad

Operating Environment:

- Operating Temperature: 0 to 45 °C
- Storage Temperature: -20 to 70 °C
- Humidity: 5% to 90% non-condensing

Power:

- Internal power supply, autosensing 100–240 VAC, 50–60 Hz, 15 watts maximum

Dimensions:

- 44 H x 230 W x 124 D mm

Weight:

- 0.9 kg
