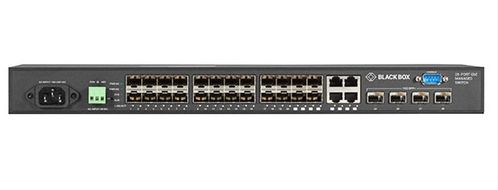

BlackBox LGB5128A-R2 28 PORT GIGABIT ETHERNET SWITCH MANAGED SFP

1/10-GbE Managed Ethernet Switch – (20) SFP Slots + (4) Shared SFP/RJ45 100/1000M plus (4) SFP+ 1/10GbE

L2 switch for high-performance fiber connectivity, scalability, and LAN access network availability.

Scalable growth: Pay-as-you-grow. Add SFPs as needed to expand your network.
High flexibility: Add 10-Gbps fiber connections to expand your 100/1000 Mbps copper/fiber network.
Includes (20) 100/1000 Mbps SFP fiber ports, (4) 100/1000 Mbps RJ45/SFP dual-media ports, and (4) 1/10-Gbps SFP+ ports.
Advanced switching and performance features commonly found in high-cost switches.
Excellent manageability, security, QoS, and performance.
IEEE 802.3az Energy-Efficient Ethernet reduces power costs.
Ideal for workgroups, office LANs, and enterprise networks with high-priority traffic needs.
Link Aggregation Control Protocol (LACP) enables port bundling to increase bandwidth.
Programmable QoS classification and prioritization.
Robust security with VLAN capabilities.
OAM and CFM support for simplified setup and management.
Manageable via web or command line.
Supports multi-node ring protection architecture.
Warranty: 1 Year Double Diamond™ (Standard).

This advanced, fully managed Layer 2 switch enables scalable, high-speed fiber connectivity with 28 total ports, including (4) 1-Gbps/10-Gbps SFP fiber ports, (20) 100-/1000-Mbps SFP fiber ports, and (4) dual-media 100-/1000-Mbps SFP/twisted pair ports. It offers versatility with a range of SFP transceivers for specific application needs.

Advanced Functions at an Affordable Price
The switch includes high-end switching and security features typically found in more costly switches, with comprehensive management options, advanced bandwidth control, and QoS for VoIP and other real-time applications.

Efficient Bandwidth Aggregation
Provide increased bandwidth for specific applications or segments by combining ports with 802.3ad LACP. Bundled ports create a multilink trunk for load balancing, with support for up to 14 groups and 8 ports per group.

Quality of Service Excellence
The switch supports advanced QoS with prioritization, classification, scheduling, and rate-limiting, featuring eight hardware queues for differentiated data management.

Security and VLAN Support
MAC address filtering and VLAN functionality provide robust network security and network segmentation capabilities.

Versatile Management
Monitor, configure, and control the switch via its RS-232 serial port or with CLI or web-based management over Ethernet.

Eco-Friendly
The SFP Gigabit/10-Gigabit Managed Fiber Switch Eco uses IEEE 802.3az Energy-Efficient Ethernet, reducing power consumption by up to 50% during low data activity.

SFP Compatibility
Compatible SFP modules include the 850-nm Multimode Gigabit SFP (LFP411), the 1310-nm Single-mode Gigabit SFP (LFP412), and SFP+ modules from our LSP400 series. For compatibility questions, contact our FREE Tech Support.

Technical Details:

Approvals:
- CE, FCC Part 15 Class A, RoHS compliant

Standards:

- IEEE 802.3u/x/z/ab/ad/ae/ah/ag/az, IEEE 802.1D/p/Q/X/s/w/AB, 1588v2, ITU-T Y.1731, G.8032v2, G.8031, Sync-E

Carrier Ethernet:

- Ethernet OAM, CFM, Sync-E

Ports:

- 28 Total: (20) SFP 100/1000 Mbps, (4) Dual Media RJ-45/SFP 100/1000 Mbps, (4) SFP+ 1/10GbE; Console port: DB9

LED Indicators:

- Each port: Link/Act/Speed; MGMT port: Link/Act/Speed; Power: PWR AC, PWR DC, SYS, ALARM

Jumbo Frames:

- Up to 9 KB

MAC Addresses:

- Up to 32K

Management:

- Web GUI, Dual-Image, SNMP, RMON, IPv4/IPv6, Port Mirroring, sFlow, HTTP/HTTPS, SSH, RADIUS, DHCP, SNTP, Telnet

Protocols:

- Standard, Rapid, and Multiple Spanning Tree; IGMP Snooping; IGMP Proxy, MLD Snooping; LLDP; LLDP-MED

QoS:

- (8) Hardware priority queues; Strict priority control and weighted round-robin; VLAN and DSCP-based classification; IPv6 application support

Switching Capacity:

- Forwarding: 95.23 mpps, Bandwidth: 128 Gbps

Trunking:

- Link Aggregation Control Protocol (LACP IEEE 802.3ad); Up to 14 groups, 8 ports per group

VLAN:

- Supports up to 4K VLANs (4096 VLAN IDs); port-based VLAN, 802.1Q tag, MAC-based VLAN, management VLAN, Private VLAN Edge (PVE), Voice VLAN, Generic VLAN Registration

Power:

- 100–240 VAC, 50–60 Hz internal power supply; -48 VDC dual input for redundancy

Environment:

- Operating Temperature: 0 to 60 °C
- Storage Temperature: -20 to +70 °C
- Operating Humidity: 10 to 90%, non-condensing

Dimensions:

- 4.4 x 44.2 x 21.1 cm (H x W x D)

Weight:

- 3.1 kg
