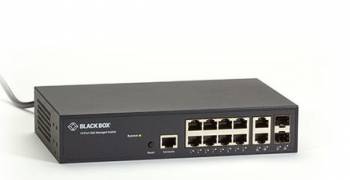

BlackBox LGB1126A-R2 GIGABIT ETHERNET MANAGED SWITCH, 26 PORTS

Gigabit L2+ Managed Switch (26-Ports)

The L2+ switch offers simple management, reduced operational costs, and fiber uplinks.

- Includes: (24) autosensing 100/1000 Mbps ports, (2) dual-media 100/1000 Mbps RJ-45/SFP ports, (1) serial console port.
- Supports all L2 features.
- Guarantees high performance and flexibility for small and medium business networks as well as smaller corporate networks.
- L2+ features enable easy management, robust security, and Quality of Service (QoS).
- Functions: DHCP server, IPv4/IPv6 management, and LLDP.
- Security features: IP Source Guard, Access Control Lists (ACL).
- The Device Management System (DMS) supports graphical monitoring and configuration.

This high-performance Layer 2+ switch includes 24 autosensing 100/1000 Mbps RJ-45 Ethernet ports, and 2 dual-media ports, which can be used for both copper and fiber connections. With 802.3ad LACP port aggregation, you can bundle ports to maximize bandwidth. The switch supports up to 4 ports per group and a total of 13 groups, making it ideal for high-traffic applications and switch-to-switch links.

It supports up to 1024 multicast groups and provides Storm Control for broadcast, multicast, and unicast traffic. IGMP v1/v2/v3 optimizes bandwidth allocation for multicast applications, making it ideal for VoIP and video streaming.

Comprehensive Management
The switch is fully manageable, supporting SNMP v1, 2c, and 3 as well as RMON (groups 1, 2, 3, and 9). An integrated web server enables web-based management. The DMS provides graphical monitoring, topological network mapping, and troubleshooting. Additional features include Dual Image, port mirroring, LLDP, sFlow®, UPnP®, IPv6, SSH, RADIUS, DHCP client, Syslog, Telnet with SSH security, and more.

VLAN and QoS Support
The switch supports up to 4000 VLANs, allowing traffic segmentation and prioritization for critical applications like VoIP and video. 802.1p Layer 2 QoS enables reliable quality of service.

Enhanced Security Features
In addition to VLANs, the switch offers 802.1X-based network access control and comprehensive ACLs to secure the network. SSH, SNMPv3, and SSL provide secure management, while a guest VLAN provides access for visitors without compromising the corporate network.

Eco-Friendly
The switch operates with IEEE 802.3az Energy Efficient Ethernet, reducing power consumption by up to 50% during low activity.

Technical Specifications:

Approvals:
- CE, FCC Part 15, Class A

Ports:

- (24) 10/100/1000 Mbps RJ-45 UTP
- (2) Dual-Media Ports (each 100/1000 Mbps RJ-45 and SFP)
- (1) RJ-45 Serial Console Port

Performance:

- MAC Addresses: 8K
- Jumbo Frames: 9216 Bytes
- Switching Capacity: 52 Gbps
- Forwarding Rate: 38.68 Mpps

Environmental:

- Operating Temperature: 0 to 40 °C
- Operating Humidity: 10 to 90%, non-condensing

Power Supply:

- 100–240 VAC, 50–60 Hz (internal)

Dimensions:

- 4.4 H x 44.2 W x 21.1 D cm (1 RU)

Weight:

- 2.5 kg
