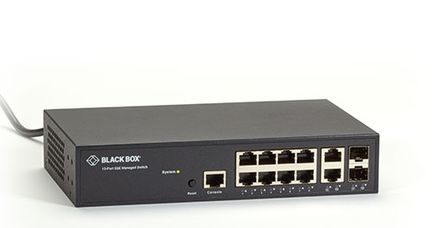

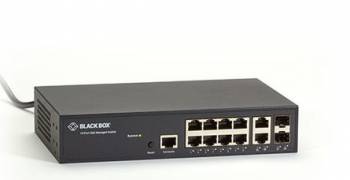

BlackBox LGB1110A GIGABIT ETHERNET MANAGED SWITCH, 10 PORTS

Managed Gigabit Ethernet Switch - 10 Ports

The L2+ switch offers simple management and low operational costs, along with powerful fiber uplinks.

- Key Features: (8) autosensing 100/1000 Mbps ports, (2) dual-media 10/100/1000 Mbps RJ-45/SFP ports, and (1) serial console port.
- Full L2 feature support.
- Provides high performance and flexibility for small and medium-sized business networks as well as smaller enterprise networks.
- Easy management, robust security, and QoS, thanks to L2+ features.
- Functions: DHCP server, IPv4/IPv6 management, LLDP.
- Security features include IP source guard and ACL.
- Device Management System (DMS) supports graphical monitoring and configuration.
- Full SNMP management and a web-based management interface.
- 802.3az Energy Efficient Ethernet reduces power consumption and costs.
- IGMP optimizes multicast traffic to reduce bandwidth strain.
- Ideal for video streaming, VoIP, and Wi-Fi client applications.
- Warranty: 1 year Double Diamond™ (Standard)

This high-performance Layer 2+ switch offers 8 autosensing 10/100/1000 Mbps RJ-45 Ethernet ports and 2 dual-media ports (100/1000 Mbps RJ-45 and SFP for fiber). The dual-media ports can be used for copper connections or adapted for SFP fiber connections.

Use 802.3ad LACP port bundling to achieve higher bandwidth. The switch supports up to 2 ports per group and a total of up to 5 groups, ideal for switch-to-switch links. Supporting up to 1024 multicast groups, the switch also offers Broadcast/Multicast/Unicast Storm Control to manage traffic overload. IGMP (v1/v2/v3) optimizes bandwidth needs.

Comprehensive Management
The switch is fully SNMP-manageable (SNMP v1, 2c, and 3), supports RMON (history, statistics, alarms, and events), and includes a built-in DHCP server. The integrated web-based GUI interface enables configuration, maintenance, and monitoring over the Internet. The Device Management System enables graphical and detailed network analysis.

Additional management features include Dual Image, port mirroring, LLDP, sFlow®, UPnP®, IPv6, SSH, RADIUS, DHCPv6 client, SNTP, cable diagnostics, ping, syslog, and Telnet with SSH security.

VLAN and QoS Support
With support for up to 4000 VLANs, data can be securely separated and segmented (e.g., guest and corporate networks). 802.1p Layer 2 QoS enables prioritization for applications such as VoIP and video.

High Security
The switch offers enterprise-grade security features, including VLANs and port-based 802.1X authentication for secure network access. SSH, SNMPv3, and SSL secure remote management via encrypted connections. A guest VLAN can be set up to allow external access without compromising the corporate network. Extensive Access Control Lists (ACLs) help secure sensitive network areas.

Eco-Friendly
The switch supports IEEE 802.3az Energy Efficient Ethernet, reducing power usage by up to 50% during low activity.

Technical Specifications:

Approvals:
- CE, FCC Part 15, Class A

Ports:

- (8) 10/100/1000 Mbps RJ-45 UTP
- (2) Dual-Media 10/100/1000 Mbps UTP/SFP Fiber
- (1) RJ-45 Serial Console Port

Performance:

- Forwarding Rate: 14.88 Mpps
- Switching Capacity: 20 Gbps
- MAC Table: 8 K
- Jumbo Frames: 9216 Bytes

Environmental Conditions:

- Operating Temperature: 0 to 40 °C
- Storage Temperature: -20 to +70 °C
- Operating Humidity: 10 to 90%, non-condensing

Power Supply:

- Input Voltage: 100–240 VAC, 50-60 Hz

Physical Data:

- Dimensions: 3.8 H x 22 W x 13.4 D cm
- Weight: 1.4 kg

TAA Compliant — YES
