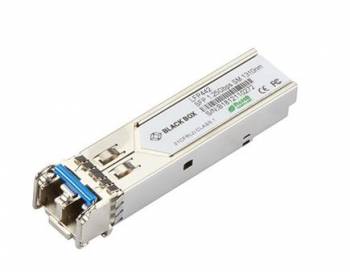

BlackBox LFP441 SFP GE MM 850NM
|
27,37 EUR |
|
|
( 32,57 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Lieske Part No.: | 1709721 |
|---|---|
| Mfg Part No: | LFP441 |
| UPC/EAN: | 00822088141990 |
| Weight: | 0.01 kg |
Product information for BlackBox LFP441:
SFP, 1250 Mbps
Modular, flexible optical transceivers for data communications equipment.
SFP package with LC connector.
Single +3.3V power supply.
LVPECL-compatible data input/output interface.
Low EMI and excellent ESD protection.
Complies with IEC-60825 laser safety standard.
Conforms to digital diagnostics per SFF-8472.
Available for multimode or singlemode transmission.
1.25 Gbps 1000Base-SX or 1000Base-LX Ethernet.
Warranty: 1-Year Double Diamond™ (Standard)
SFP Transceiver – 1.25 Gbps, 850 nm Multimode Fiber, 550 m, LC (LFP441):
- 850 nm VCSEL laser and PIN photodetector
- Up to 550 m transmission on 50/125 µm Multimode Fiber (MMF)
- Supports 1.25 Gbps 1000Base-SX Ethernet
- Dual-rate Fiber Channel (1.063/2.125 Gbps) compatible
- For wireless applications such as CPRI, OBSAI, LTE
SFP Transceiver – 1.25 Gbps, 1310 nm Singlemode Fiber, 20 km, LC (LFP442):
- 1310 nm FP laser and PIN photodetector
- Up to 20 km transmission on Singlemode Fiber (SMF)
- Signal ground isolated from casing
- Supports 1.25 Gbps 1000Base-LX Ethernet
- Compatible with 1.06 Gbps Fiber Channel
Approvals:
- CE, FCC
- LFP442: up to 20 km
- LFP442: Singlemode, 1310 nm
- Power Consumption: 1 W
- Source: SFP cage
- Storage Temperature: -40 to 85 °C
- Operating Humidity: 5 to 85% non-condensing
- Weight: 0.016 kg
Modular, flexible optical transceivers for data communications equipment.
SFP package with LC connector.
Single +3.3V power supply.
LVPECL-compatible data input/output interface.
Low EMI and excellent ESD protection.
Complies with IEC-60825 laser safety standard.
Conforms to digital diagnostics per SFF-8472.
Available for multimode or singlemode transmission.
1.25 Gbps 1000Base-SX or 1000Base-LX Ethernet.
Warranty: 1-Year Double Diamond™ (Standard)
Models:
SFP Transceiver – 1.25 Gbps, 850 nm Multimode Fiber, 550 m, LC (LFP441):
- 850 nm VCSEL laser and PIN photodetector
- Up to 550 m transmission on 50/125 µm Multimode Fiber (MMF)
- Supports 1.25 Gbps 1000Base-SX Ethernet
- Dual-rate Fiber Channel (1.063/2.125 Gbps) compatible
- For wireless applications such as CPRI, OBSAI, LTE
SFP Transceiver – 1.25 Gbps, 1310 nm Singlemode Fiber, 20 km, LC (LFP442):
- 1310 nm FP laser and PIN photodetector
- Up to 20 km transmission on Singlemode Fiber (SMF)
- Signal ground isolated from casing
- Supports 1.25 Gbps 1000Base-LX Ethernet
- Compatible with 1.06 Gbps Fiber Channel
Specifications:
Approvals:
- CE, FCC
Connectors:
- Duplex LCTransmission Range:
- LFP441: up to 550 m- LFP442: up to 20 km
Data Rate:
- 1.25 GbpsFiber Type:
- LFP441: 50 Micron Multimode, 850 nm- LFP442: Singlemode, 1310 nm
Power Supply:
- Input Voltage: 3.3 V- Power Consumption: 1 W
- Source: SFP cage
Environmental Conditions:
- Operating Temperature: 0 to 70 °C- Storage Temperature: -40 to 85 °C
- Operating Humidity: 5 to 85% non-condensing
Dimensions and Weight:
- Dimensions: 8.5 H x 13.7 W x 55.4 D cm (W x H x D)- Weight: 0.016 kg
