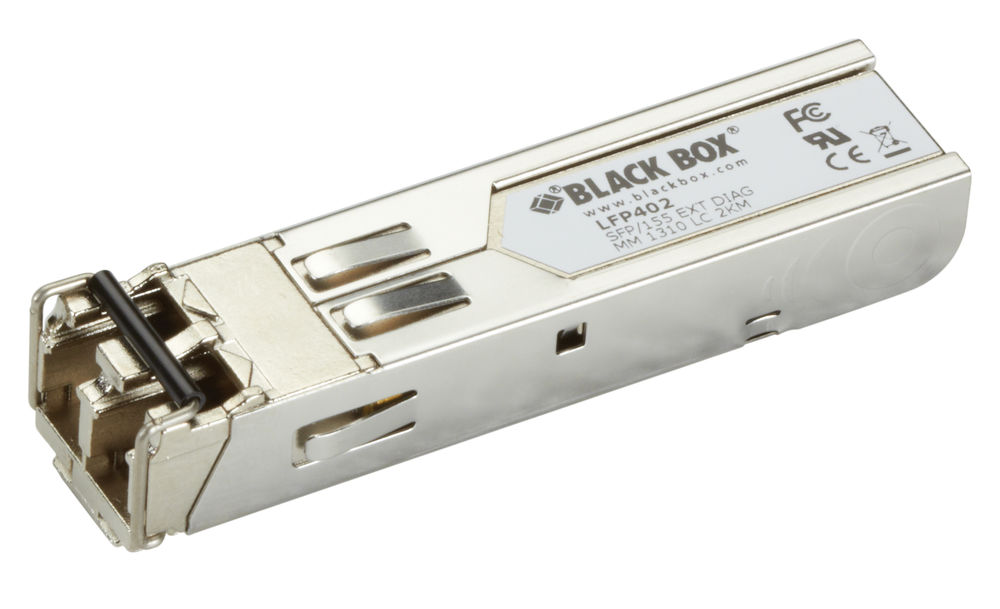

BlackBox LFP402
SFP transceiver, 155 Mbps, MM 1310 nm, LC, 2km, extended diagnostics

SFP Module 155 Mbps with Advanced Diagnostics

Modular, flexible optical transceiver for data communication equipment.

This optical SFP transceiver adapts an SFP slot to a fiber optic interface, ideal for Ethernet, Fast Ethernet, and 155-Mbps ATM connections.
Data transparency ensures compatibility with network standards up to 155 Mbps.
Supports advanced diagnostic functions to monitor temperature, TX and RX power, voltage, and bias current.
Hot-swappable interface allows quick SFP replacement as network needs change.
Wide operating temperature range from -40 °C to +85 °C.
Compatible with SFP slots on most network devices. For further information, contact our free technical support.
Warranty: 1-Year Double Diamond™ (Standard)

Features and Specifications:

Fully data-transparent, this SFP transceiver is compatible with network standards up to 155 Mbps.
Suitable for Ethernet, Fast Ethernet, and 155-Mbps ATM applications.
Supports diagnostic features to monitor key connection parameters such as SFP type, fiber length, wavelength, and bitrate.

Certifications:

CE, FCC, TUV, UL certified

Fiber Optics:

- LFP401/402: 50-micron multimode
- LFP403/404: 9-micron singlemode

Wavelength:

- LFP401: 850 nm
- LFP402-404: 1310 nm

Transmission Rate:

- 155 Mbps

Maximum Range:

- LFP401/402: up to 2 km
- LFP403: up to 30 km
- LFP404: up to 60 km

Connections:

- Duplex LC

Operating Conditions:

- Altitude: up to 1800 m
- Operating Temperature: -40 °C to +85 °C
- Storage Temperature: -40 °C to +85 °C
- Humidity: 5 % to 85 % (non-condensing)

Physical Specifications:

- Weight: 0.016 kg
- Dimensions: 5.6 x 1.52 x 1.24 cm (H x W x D)

TAA Compliance:

- Yes
