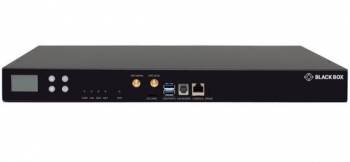

BlackBox LES1708A-R2 CONSOLE SERVER 8 PORT

Console Server LES1700 Series

Advanced console port access with full redundancy through dual Ethernet ports and modem.

Dual Gigabit Ethernet ports (including integrated SFPs) and dual power supplies for complete redundancy and seamless auto-failover.
Equipped with a POTS modem.
Enterprise-level security, including FIPS certification and more.
Two integrated USB 3.0 console ports provide connectivity to next-generation infrastructure devices.
Software-selectable serial pinouts.
Built-in ZTP and LLDP for easier configuration.
Provides audit trail logging.

The LES1700 Series provides secure, comprehensive out-of-band management for IT infrastructure in data centers and remote sites. Offering quick access to devices such as routers, switches, PDUs, and firewalls, it enables monitoring and control of UPS and power status. With options for redundant connectivity via Ethernet, WiFi, and modem, as well as ZTP and LLDP support, the server ensures optimal resilience.

Built-in Redundancy:

Dual Gigabit Ethernet with SFP, dual power supplies, and additional WiFi and POTS modem connections ensure reliable access, even in case of infrastructure issues.

USB Connectivity:

The LES1700 Series supports USB 3.0, enabling connections to infrastructure devices and storage peripherals with direct access via the AJA
X web terminal or SSH.

Specifications:

CPU: 1 GHz ARM SoC (Marvell 88F6283)
Memory: 256 MB DDR2 SDRAM, 64 MB NOR Flash, 16 GB internal storage
Ports:

• LES1708A-R2: 8 software-selectable RJ-45 RS-232 ports
• LES1716A-R2: 16 software-selectable RJ-45 RS-232 ports
• LES1732A-R2: 32 software-selectable RJ-45 RS-232 ports
• LES1748A-R2: 48 software-selectable RJ-45 RS-232 ports

Interfaces:

• Ethernet: 2x 10/100/1000 Mbps Ethernet/SFP ports with 1500 VAC isolation, ESD protection
• Console Port: RJ-45 RS-232
• Modem: internal V.92 POTS modem (RJ-11)
• USB: 2x USB 3.0 for storage expansion

Security Features:

• SSH, FIPS-140-2 compliant SSL module, AES encryption, IPsec
• Authentication: AAA (TACACS+, RADIUS, Active Directory/OpenLDAP, Kerberos)
• Two-factor authentication, Stateful firewall, OpenVPN

Automation:

• Supports ZTP, LLDP, SNMP, and NTP
• RESTful API for extended programmability

Environmental Conditions:

• Operating Temperature: 5 to 40°C
• Storage Temperature: -30 to 60°C
• Humidity: 5 to 90% non-condensing
• MTBF: 150,000 hours

Certifications:

• FCC Part 15, EN55022, CISPR 22, RoHS compliant, FIPS 140-2 certified (#2473)

Included:

• (1) LES1700 Console Server
• (1) Rackmount Kit with screws and brackets
• (2) Power cables
• (2) CAT5 patch cables
• (1) DB9 F to RJ-45 F straight-through adapter
• (1) DB9 F to RJ-45 F crossover adapter
• (1) Quick Start Guide
