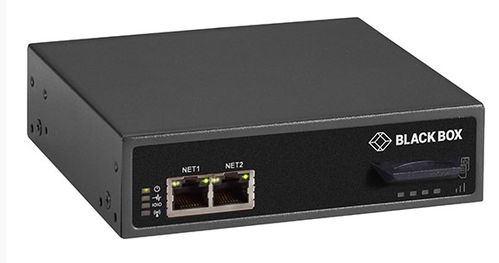

BlackBox LES1608A CONSOLE SERVER 8 PORT

Console Server LES1600 Series – Cisco Pinout 4/8 Ports

Cost-effective console server provides economical, redundant out-of-band management.

Affordable, secure remote network management for four or eight devices.
Dual 10/100/1000 Ethernet uplinks with seamless auto-failover provide built-in redundancy.
Includes four USB 2.0 ports for data transfers of managed devices.
Integrated digital I/O and high voltage I/O.
Powerful 800 MHz ARM SoC with 4 GB internal flash storage for storing device images.
Maintains network connectivity during outages with IP passthrough.
Ideal for companies with remote branches and limited IT staff as well as co-location data centers.
Warranty: 4 years Double Diamond™ (standard)

Console servers are designed for remote configuration, restart, and recovery of devices with serial console ports, such as routers, switches, and firewalls. They ensure quick access in emergencies and allow businesses to maintain uptime with limited IT resources.

Remote Access and Monitoring:

The LES1600 provides affordable out-of-band access to critical network devices and supports offline log storage, environmental monitoring, and power management. With dual Ethernet and optional 4G backups, businesses can monitor network and environmental conditions 24/7.

USB Connectivity:

The server supports direct USB 2.0 connections to Cisco USB console ports, allowing for peripherals such as storage devices and USB consoles.

Dual Ports for Built-In Redundancy:

Dual Gigabit Ethernet ports provide connections to primary and secondary networks, switching automatically in the event of connection loss to ensure high availability.

Ideal User Groups:

• Businesses with remote offices
• Organizations with limited IT resources
• Data center tenants
• Cloud and hosting providers
• Research and lab environments
• Government, educational, and healthcare institutions

Specifications:

CPU: 800 MHz Armada 370 ARMv7 SoC (Marvell 88F6W11)
Memory: 256 MB DDR3 SDRAM; 32 MB NOR Flash; 4 GB NAND Flash internal

Security and Authentication Features:

• SSH, FIPS-140-2 compliant Open SSL module, AES encryption, Cisco-compatible IPsec
• AAA protocols: TACACS+, RADIUS, Active Directory/OpenLDAP, Kerberos
• Two-factor authentication, OpenVPN, and Stateful Firewall

Interfaces:

LES1604A, LES1604A-R:
(4) RJ-45 RS-232 console ports (Cisco pinout), (2) Ethernet RJ-45 (10/100/1000 Mbps), (4) USB 2.0 ports
LES1608A:
(8) RJ-45 RS-232 console ports (Cisco pinout), (2) Ethernet RJ-45, (4) USB 2.0 ports

Power:

Input: 110–240 VAC to external 12 VDC adapter
Consumption: <11.5 W

Dimensions and Weight:

13H x 12W x 3.5D cm, Weight: 0.58 kg

Environmental Conditions:

Temperature Range: -25 to 60 °C, Humidity: 5–90%, non-condensing
MTBF: 150,000 hours

Certifications:

Emissions: FCC Part 15, EN55022, CISPR 22, ICES-003, EN 61000-3-2/-3
Immunity: EN55024, CISPR 24, EN 61000-4-2 to -4-11
Other Certifications: CE, UL 1950, TUV, C-Tick, RoHS compliant, FIPS 140-2 validated module (Cert #2473), CCC

Included in the Package:

(1) LES1604A, LES1604A-R, or LES1608A Console Server
(1) DB9F-to-RJ-45 crossover adapter
(1) 12 VDC power adapter with international plugs (US, UK, EU, AU)
(1) Rackmount kit with brackets and screws
(4) Adhesive rubber feet
(1) Digital I/O converter (terminal block)
(1) SIM holder, (2) antennas (LES1604A-R only)
(1) Quick Start Guide
