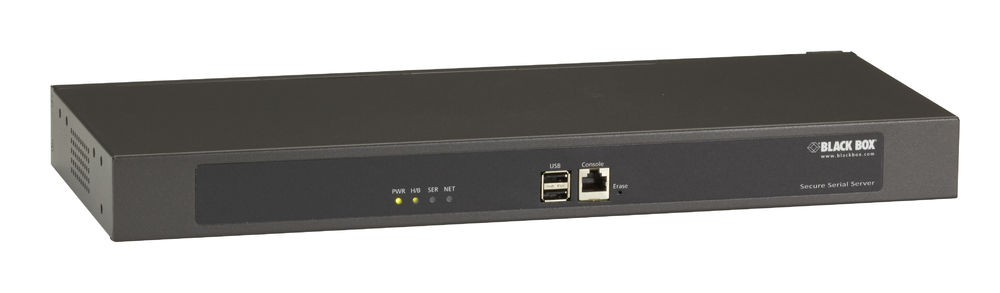

BlackBox LES1532A
32-Port Secure Serial Server with Cisco Pinout

Secure Console Server with Cisco Pinout - LES1500 Series

Secure remote out-of-band management.

Affordable, secure remote network management for up to 16 devices.
Dual Gigabit Ethernet ports with auto-failover for built-in redundancy.
Ideal for businesses with remote branches, limited IT staff, and co-location data centers.
Warranty: 4 years Double Diamond™ (standard)

Tight budgets and limited IT staffing make managing mission-critical IT, network, and power devices remotely a challenge.

The Secure Console Server with Cisco pinout is the solution. This highly reliable, feature-rich server simplifies out-of-band management for network, server, and power infrastructure across data centers and remote sites.

Use it for affordable out-of-band access to routers, switches, PDUs, firewalls, and other serial consoles. The server gives complete visibility and control of your network environment for reliable 24/7 uptime. It provides connectivity to serial console ports, supports environmental monitoring, power management, and remote site storage of off-line logs.

Who can benefit from the Secure Console Server?

Businesses with remote offices.
Organizations with limited IT staff and budgets.
Data center colocation tenants.
Cloud and hosting providers; ISPs.
Research and lab environments.
Government, education, and healthcare organizations.

Smart out-of-band management:

This server offers advanced features beyond traditional out-of-band devices, detecting faults proactively. Monitor and log environmental conditions like temperature, humidity, and motion, or use it for monitoring UPSs and PDUs. The integrated dashboard provides an at-a-glance status view.

Dual Ports for Redundancy:

Supports USB 2.0 connections to Cisco USB consoles. Dual USB ports allow peripheral attachments like storage.

Dual Gigabit Ethernet ports enable connections to primary and secondary networks with failover. Restart computers remotely, even when unresponsive.

Environmental & Power Monitoring:
Receive alerts by email, SMS, SNMP traps. The server supports automated reboots and custom scripts. Helps save power, reduce costs.

Security Features:

Enterprise firewall, customizable levels.
FIPS 140-2 validated encryption for government/military.
Physically separate management LAN.
Two-factor RSA, RADIUS, TACACS+, LDAP, and Kerberos authentication.
VPNs, including OpenVPN, IPsec.

On-site 4 GB FTP/TFTP flash for configuration file storage.

Approvals — CE, UL 1950, TUV, C-Tick, RoHS compliant, FIPS 140-2 Certificate #1051.

Interfaces:

Ethernet Ports: (2) 10-/100-/1000-Mbps with 1500 VAC isolation, ESD protection; Console Port: (1) RJ-45 RS-232 console;
USB: (2) USB 2.0

Remote Access: Dual Ethernet, redundancy, failover, IPv6

Console Management — Web terminal, SSH, keystroke logging, multiple sessions

Security:

SSH, FIPS-140-2, AES encryption, IPsec; AAA—TACACS+, RADIUS, Active Directory/OpenLDAP, Kerberos; OpenVPN

Ports:

16, 32, or 48 RJ-45 RS-232 ports;
(2) Ethernet 10/100/1000;
(2) USB 2.0 ports

Dimensions — 4.5H x 43.2W x 17.5D cm (1.75H x 43,2 cm ( 17 inch )W x 6.9D)
Weight — 4 kg
Temperature — 5 to 50 °C
Humidity — 5 to 90% non-condensing

Power — 100-240 VAC, less than 30 W

Emissions —
FCC Part 15 Class A; EN55022 Class A; IEC/CISPR 22 Class A

Immunity —
EN55024; IEC61000 series

TAA Compliant — YES

Package includes:

16-Port Secure Serial Server, Rackmount kit, CAT5 cables, Cisco connector, Power supply, Quick-start guide
