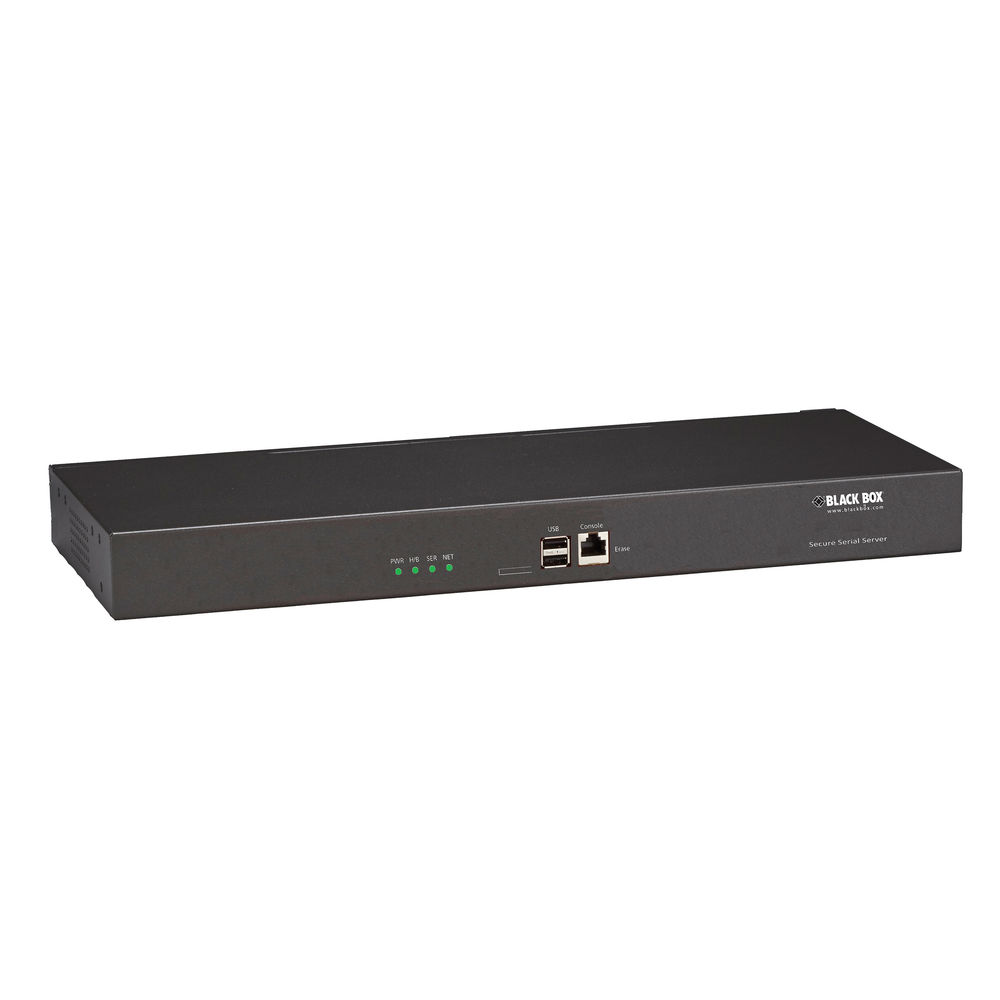

BlackBox LES1516A
16-Port Secure Serial Server with Cisco Pinout

Secure Console Server with Cisco Pinout - LES1500 Series

Secure remote out-of-band management.

Affordable and secure remote network management for up to 16 devices.
Dual Gigabit Ethernet ports with automatic failover provide built-in redundancy.
Ideal for businesses with remote branches and limited IT staff as well as co-location data centers.
Warranty: 4 years Double Diamond™ (Standard)

Tight budgets and limited IT staffing make remote management of critical IT, network, and power devices challenging. The solution is the Secure Console Server with Cisco pinout, providing affordable out-of-band access to network, server, and power infrastructure.

Who benefits from the Secure Console Server?

Businesses with branch offices.
Organizations with limited IT budgets.
Colocation tenants in data centers.
Cloud and hosting providers; ISPs.
Research and laboratory environments.
Government, education, and healthcare sectors.

Smart out-of-band management
The Secure Console Server goes beyond traditional out-of-band management, monitoring system health and environmental conditions like temperature, humidity, and motion. Manage UPS and PDU devices for disruption detection, power surges, and power cycling. A built-in dashboard provides instant status overview.

Dual Ports for Redundancy
Alongside RS-232 ports, the server supports USB 2.0 connections to one or two Cisco USB console ports. Dual Gigabit Ethernet ports allow connections to primary and secondary networks with automatic failover.

Comprehensive Environmental and Power Monitoring
The console server supports extensive monitoring, alerts via e-mail, SMS, and SNMP traps, and automated actions for event-triggered notifications. Optional external monitoring equipment is required.

Ideal for Service Providers
Service providers benefit from the console server's secure remote access to client devices, including those behind firewalls. Control various UPS systems and PDUs from different manufacturers.

Security Features:

Enterprise-class firewall with customizable security levels.
FIPS 140-2 validated encryption.
A separate management LAN isolates devices from standard access.
Two-factor authentication, e.g., RSA SecurID, Kerberos.
Authentication via RADIUS, TACACS+, LDAP/Active Directory.
On-/off-site logs for compliance and audit reporting.
Comprehensive VPN support (OpenVPN, IPSec).

With 4 GB FTP/TFTP flash storage, the server supports local storage of device configurations and serial/logs, with rollback if needed. Approvals: CE, UL® 1950, TUV, C-Tick, RoHS, NERC CIP security, FIPS 140-2 certificate #1051.

Interfaces —
Ethernet Ports: (2) 10-/100-/1000-Mbps Ethernet ports with 1500 VAC isolation, ESD protection;
Console Port: (1) RJ-45 RS-232 console port;
USB: (2) USB 2.0 ports for storage expansion
Remote Access: Dual Ethernet, aggregation; failover; easy browser UI, IPv6 support
Console Management — Built-in web terminal, SSH direct access, optional keystroke logging, cable disconnect alert, text pattern matching, inline power control, concurrent sessions
Security and Authentication —
SSH; FIPS-140-2 compliant Open SSL Module; Strong AES encryption; Cisco-compatible IPsec; AAA—TACACS+, RADIUS, Active Directory/OpenLDAP, Kerberos, with local fallback; Two-factor authentication; Stateful firewall; OpenVPN
Connectors—
(16), (32), or (48) RJ-45 RS-232 software-selectable console ports;
(2) Ethernet 10/100/1000 RJ-45;
(1) RJ-45 RS-232 console port;
(2) USB 2.0 ports
Dimensions — 4.5H x 43.2W x 17.5D cm (1.75H x 43,2 cm ( 17 inch )W x 6.9D)
Weight— 4 kg
Temperature (Operating) — 5 to 50° C
Humidity — 5 to 90%, noncondensing
Power —
Input: (1) 100-240 VAC, 50-60 Hz, internal power supply;
Consumption: under 30 W
Emissions —
FCC Part 15 Subpart B Class A;
ICES-003 Issue 4 Class A;
AS/NZS CISPR 22: 2004 Class A;
EN55022: 1998 + A1: 2000 + A2: 2003 Class A

Immunity —
EN55024: 1998 +A1: 2001 +A2: 2003;
IEC61000-4-2 (ESD);
IEC61000-4-3 (Radiated Immunity);
IEC61000-4-4 (EFT/Burst);
IEC61000-4-5 (Surge);
IEC61000-4-6 (Conducted Immunity);
IEC61000-4-11 (Voltage Dips and Interruptions)
TAA compliant — YES
