BlackBox VDSL POE/PSE Ethernet Extender Kit 10/100

Your rating:
Average rating
product review for BlackBox VDSL POE/PSE Ethernet Extender Kit 10/100
( 4.6 / 5 ) 8 ratings
BlackBox LBPS01A-KIT
This image may differ from the desired article.
557,76 EUR
( 663,73 EUR incl. VAT )
≈ £466.85  |  ≈ $612.98
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 18 workdaysinfo_outline
1x BlackBox VDSL POE/PSE Ethernet Extender Kit 10/100
Lieske Part No.:152634
Mfg Part No: LBPS01A-KIT
Weight:1.26 kg
Graduated prices net
From piecesPrice per pieces
3553,58 EUR
6549,39 EUR
9545,21 EUR
12541,03 EUR

Product information for BlackBox LBPS01A-KIT:

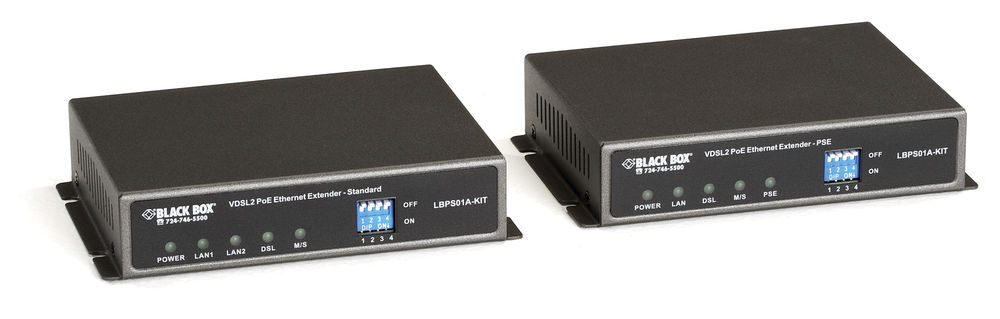

The VDSL2 PoE Ethernet Extender Kit from BlackBox is an industrial-grade device for extending Ethernet networks over existing copper telephone lines. It enables power supply and data transmission for remote PoE devices such as IP cameras or access points, without requiring additional power outlets at the installation site. The kit consists of two units: one configured as PoE Power Source Equipment (PSE), which delivers power over the network cable, and one standard extender unit, which establishes the data connection over the telephone line. The units are connected via a copper telephone line, enabling both data transmission and power supply over the same pathway.

Applications
This extender kit is particularly suitable for applications in buildings where Ethernet cabling is not available, but an existing telephone line is present. Typical use cases include installing surveillance cameras in outdoor areas, warehouses, or buildings with poor power supply at the installation site. The use of VDSL2 technology enables data transmission over longer distances, with a range of up to 1200 meters at a transmission rate of 28/0.3 Mbps. For shorter distances up to 150 meters, transmission rates of 100 Mbps downstream and 60 Mbps upstream are available.

Functions and Features in Detail
The PSE unit supplies power according to the IEEE 802.3af standard, ensuring compatible power delivery for standard-compliant PoE devices. Power is delivered over the Ethernet cable, eliminating the need to provide additional power sources at the installation site. The standard extender unit features two Ethernet ports (RJ-45), allowing it to connect to multiple devices. Both units are equipped with RJ-11 connectors for the telephone line. Configuration is performed via DIP switches, enabling simple master/slave setup. The units are designed for straightforward installation, with connection cables directly attached to the telephone line.

Technology Explained Simply
The technology is based on VDSL2, a variant of Digital Subscriber Line technology developed for data transmission over copper lines. Transmission occurs over existing telephone lines, avoiding the need to lay additional network cables. The Ethernet ports support autosensing and autonegotiation, meaning the transmission rate and duplex mode are automatically detected and set. The Auto MDI/MDI-X function allows direct connection between devices without requiring additional crossover cables. Power is supplied via PoE (Power over Ethernet), with the PSE unit delivering energy over the Ethernet cable. The PSE unit is powered by a 12 VDC, 2 A power supply connected to an 110/220-VAC outlet. The standard unit is powered by a 5 VDC, 1 A power supply.

Compatibility and Accessories
The kit is compatible with IEEE 802.3af-compliant PoE devices, such as IP cameras or wireless access points. Data transmission occurs over 10BASE-T/100BASE-TX Ethernet, enabling use with standard Ethernet devices. The units are designed for indoor use, with operating temperature ranging from 0 to 50 °C and humidity from 5 to 95 % (non-condensing) defining the operating conditions. Status LEDs on both units indicate operational status, including power supply, LAN connection, DSL status, and master/slave configuration.

Installation and Mounting
Installation involves directly connecting the units to the existing telephone line. The PSE unit is connected to the power source, while the standard unit is installed at the target location. Configuration is done via DIP switches located on the rear of the devices. The units are compact in size, measuring 2 cm (H) x 12 cm (W) x 9 cm (D), allowing for flexible placement.

Operational Advantages
A key advantage of the kit is the reduction in installation costs, as no additional power outlets or network cables need to be installed. Utilizing existing telephone lines minimizes required modifications. Low latency ensures reliable transmission of video and voice data, which is important for surveillance applications and VoIP systems. Simple configuration via DIP switches allows for quick setup without special tools or software. The warranty covers one year, indicating the product's reliability.

General
Degree of protectionnot specified
Data transmission10BASE-T/100BASE-TX Ethernet over copper telephone line
Transmission rate100 Mbps downstream / 60 Mbps upstream up to 150 m
Transmission rangeup to 1200 m at 28/0.3 Mbps
Ethernet portAutosensing, autonegotiating 10-/100-Mbps, Auto MDI/MDI-X
ConfigurationDIP switch for master/slave configuration
Operation temperature0 to 50 °C
Air humidity5 to 95 %
PSE unit connectionsDSL: 1 x RJ-11, Ethernet: 1 x RJ-45
Connectors standard unitDSL: 1 x RJ-11, Ethernet: 2 x RJ-45
Display LEDs PSE unitPower, LAN, DSL, M/S, PSE
Display LEDs standard unitPower, LAN1, LAN2, DSL, M/S
Power Supply Unit (PSE) power supplyInput: 12 VDC, 2 A (via 110/220-VAC, 50/60 Hz power supply), Output: 100 mA @ -48 VDC
Power supply standard unitInput: 5 VDC, 1 A (via 110/220-VAC, 50/60 Hz power supply)
PoE standardIEEE 802.3af compliant
Kit contents2 Extenders: 1x PSE device, 1x standard extender
