BlackBox EMS1G48FAN EMS1G48 SPARE FAN

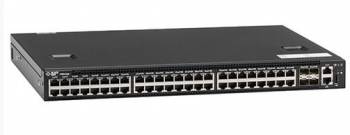

IP-based Emerald® KVM Matrix Switch, 1 GbE, 48-Port

Create a fully configurable IP-based KVM switching and extension system connecting your Emerald transmitters and receivers over IP networks. This switch offers a non-blocking switching architecture with a full-duplex capacity of 260 Gbps, making it a powerful and scalable solution.

Technical Data:

• Ports:
- 48x 1000BASE-T (RJ45)
- 4x 10GE SFP+ cages
- 1x RJ-45 RS232 console management port
- 1x 10/100/1000BT Ethernet management port
- 1x USB 2.0 Type-A storage port

• Switch Fabric Capacity: 260 Gbps (full-duplex)
• Forwarding Rate: 131 Mpps
• MAC Addresses: up to 80k
• IPv4 Routes: 16K
• IPv6 Routes: 8K (shared CAM space with IPv4)
• Layer 2 VLANs: 4K
• Layer 3 Routing: IPv4 and IPv6 (line-rate)
• Link Aggregation: 16 links per group, 128 groups per stack
• Queues per port: 8
• Latency: 3.7 μsec (1000BASE-T), 1.8 μsec (SFP+)
• Packet Buffer Memory: 4 MB
• CPU Memory: 2 GB

Network Management:

• SNMPv1/2, SSHv2, FTP, TFTP, SCP
• Syslog, Port Mirroring
• RADIUS, 802.1X
• Support Assist (Phone Home), sFlow

QoS Support:

• Access Control Lists, Prefix Lists, Route Map
• Rate Shaping (Egress), Rate Policing (Ingress)
• Scheduling Algorithms: Round Robin, Weighted Round Robin, Deficit Round Robin, Strict Priority
• Weighted Random Early Detect (WRED)

Power Supply:

• Input: 90-264 VAC, 50/60 Hz
• Max. Power: 87 W
• Typical Power Consumption: 65 W
• Max. Heat Dissipation: 290 BTU/h
• Redundant Power Supply: Hot-swappable, 2 included
• Fans: 4 hot-swappable redundant fans

Environment:

• Operating Temperature: 0 to 45°C
• Storage Temperature: -40 to 70°C
• Humidity: 5 to 85%, non-condensing

Dimensions and Weight:

• Dimensions: 1RU, 44 x 434 x 320 mm
• Weight: 5.84 kg

Compliance:

• CE, RoHS
• Safety Standards: UL/CSA/EN 60950-1
• Emissions: FCC CFR 47 Part 15, Class A
• Immunity: EN 300 386, EN 55024, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2 to EN 61000-4-6
