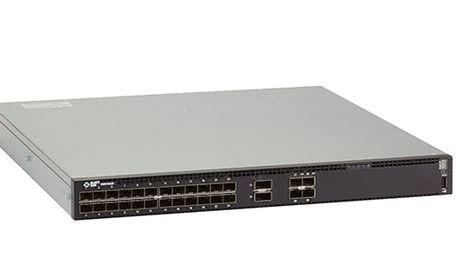

BlackBox EMS10G28 EMERALD, 10G 28 PORT NETWORK SWITCH

IP-based Emerald® KVM Matrix Switch, 10 GbE, 28-Port

The IP-based Emerald KVM Matrix Switch allows you to create a fully customizable KVM switching and extension system that connects your Emerald transmitters and receivers over an IP network. This high-density 1RU switch offers 28 ports with 10 Gbit/s SFP+ and 2 ports with 100 Gbit/s QSFP28, ideal for building a powerful IP-based KVM matrix. It supports non-blocking cut-through switching with a full-duplex capacity of 960 Gbps, providing line-rate performance under full load.

Technical Data:

• Ports: 28x 10GbE SFP+ and 2x 100GbE QSFP28
• Switching: Non-blocking cut-through switching with 960 Gbps (full duplex)
• Supports 10G SFP+ transceivers
• Redundant, hot-swappable power supplies and fans
• Scalable L2 and L3 Ethernet switching with QoS, ACL, and support for IPv4 and IPv6 features (OSPF, BGP, PBR)

Performance:

• Packet buffer: 12 MB
• CPU memory: 4 GB
• MAC addresses: 160K
• ARP table: 128K
• IPv4 routes: 128K
• IPv6 hosts: 64K
• IPv6 routes: 64K
• Multicast hosts: 8K
• Link aggregation: 16 links per group, 128 groups
• VLANs: 4K
• Load balancing: Based on Layer 2, IPv4, or IPv6 headers

Network Management:

• SNMPv1/2, SSHv2, FTP, TFTP, SCP
• RADIUS, 802.1X, Syslog, Port Mirroring
• Netconf APIs, sFlow
• QoS support: ACLs, rate shaping, priority scheduling

Power Supply:

• Input: 100-240 VAC, 50/60 Hz
• Max. Power: 290 W
• Typical operating power: 260 W
• Max. heat dissipation: 886 BTU/h
• Redundant power supply: Hot-swappable
• Fans: 4 hot-swappable redundant fans

Dimensions and Weight:

• 1RU: 44 x 431 x 457 mm
• Weight: 8.92 kg

Environment:

• Operating temperature: 0 to 40°C
• Storage temperature: -40 to 70°C
• Humidity: 10 to 90%, non-condensing

Compliance:

• CE, RoHS
• Safety standards: UL/CSA/EN 60950-1
• Emissions standards: EN 55032, FCC Part 15 Class A

Included Items:

• 1x IP-based Emerald® KVM Matrix Switch (28-Port, 10GbE)
