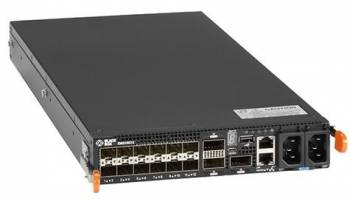

BlackBox EMS10G12 EMERALD,12 (10G)PORTS, 3(100G) PORT NETWORK SWITCH

IP-based Emerald® KVM Matrix Switch, 10 GbE, 12-Port

The IP-based Emerald KVM Matrix Switch enables you to create a fully customizable KVM switching and extension system, connecting your Emerald transmitters and receivers over IP networks. This high-performance 1RU switch provides 12 SFP+ ports with 10GbE and 3 QSFP28 slots for 100GbE connections, ideal for scalable KVM matrix solutions with high bandwidth, supporting pixel-perfect 4K/60 video over IP.

Technical Data:

• Ports: 12x 10GbE SFP+ and 3x 100GbE QSFP28 slots
• Switching: Non-blocking cut-through switching with 840 Gbps (full duplex)
• Redundant power supplies and fans
• Supports 10GBASE fiber optics
• VXLAN gateway support for virtualized and non-virtualized networks
• Scalable L2/L3 Ethernet switching with QoS, ACL, and IPv4/IPv6 features (OSPF, BGP, PBR)

Performance:

• Packet buffer: 12 MB
• CPU memory: 4 GB
• MAC addresses: 272K
• ARP table: 200K
• IPv4 routes: 200K
• IPv6 hosts: 64K
• Multicast hosts: 8K
• Link aggregation: 32 links per group, 128 groups
• VLANs: 4K
• Load balancing: Layer 2, IPv4/IPv6

Network Management:

• SNMPv1/2, SSHv2, FTP, TFTP, SCP
• RADIUS, 802.1X, Syslog, Port Mirroring
• Netconf APIs, sFlow
• QoS support: ACLs, rate shaping, priority scheduling

Power Supply:

• Input: 100-240 VAC, 50/60 Hz
• Max. Power: 180 W
• Redundant power supply: Hot-swappable
• Fans: 3 hot-swappable redundant fans

Dimensions and Weight:

• 1RU: 44 x 431 x 457 mm
• Weight: 8.92 kg

Environment:

• Operating temperature: 0 to 40°C
• Storage temperature: -40 to 70°C
• Humidity: 10 to 90%, non-condensing

Compliance:

• CE, RoHS
• Safety standards: UL/CSA 60950-1, EN 60950-1
• Emissions standards: EN 55032, FCC Part 15 Class A

Included Items:

• 1x IP-based Emerald® KVM Matrix Switch (12-Port, 10GbE)
