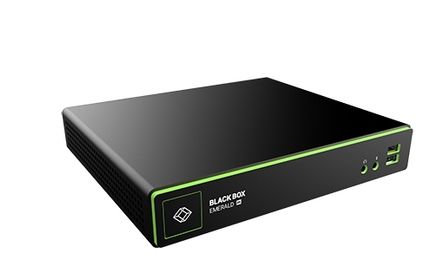

BlackBox EMD4000T EMERALD, 4K DISPLAY PORT, VUSB, AUDIO, VM,TX

Emerald® 4K KVM-over-IP Extender - DisplayPort, Single-Head, V-USB 2.0, Audio

The Emerald 4K KVM-over-IP Extender delivers pixel-perfect 4K 60 video extension and switching over IP networks with direct access to virtual machines. Using dual-stream technology, it allows full interoperability between HD transmitters and receivers. The extender supports transparent USB 2.0 and audio and offers ultra-low latency. Users can quickly access their target servers with premium video quality and rich peripheral support, including USB 2.0 devices like Wacom® tablets.

Technical Data:

• Video Resolution: Up to 4K60 (4096 x 2160 @ 60 Hz)
• Bandwidth Requirements: Less than 40 Mbps for 1080p video
• USB Support: Transparent USB 2.0
• Audio Support: Bi-directional analog stereo
• Latency: Ultra-low
• Network Requirements: 10-Gigabit Ethernet network for 4K video
• Distance (Direct Connect):
- CATx: Up to 100 m
- Fiber: 300 m to 10 km (depending on SFP used)

• EDID Support: Internal EDID table in transmitter
• Operating Temperature: 0 to 40 °C
• Storage Temperature: -20 to 60 °C
• Humidity: 5 to 95%, non-condensing
• Dimensions: 39 x 216 x 187 mm
• Weight:
- Transmitter: 1.14 kg
- Receiver: 1.16 kg


Ports:

• Transmitter EMD4000T:
- (1) DisplayPort
- (1) USB Type B
- (2) 3.5 mm audio jacks
- (1) DB9 serial
- (1) RJ-45
- (2) SFP+ slots
- (1) Power connector

• Receiver EMD4000R:
- (1) DisplayPort
- (4) USB Type A
- (2) 3.5 mm audio jacks
- (1) DB9 serial
- (1) RJ-45
- (2) SFP+ slots
- (1) Power connector


Included items:

• Transmitter:
- (1) USB Type A to B Cable (1.8 m)
- (1) DisplayPort Cable (1.8 m)
- (2) 3.5 mm Audio Cables (1.5 m)
- (1) 12V DC Power Supply

• Receiver:
- (1) 12V DC Power Supply


Compatibility:

• Firmware: 6.0 compatible with other endpoints using version 6.0
• Supported Operating Systems: Microsoft Windows®, Linux®, Solaris, Mac OS
• TAA Compliant: Yes
