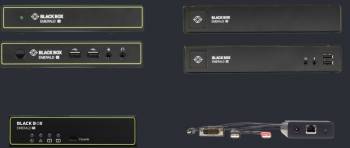

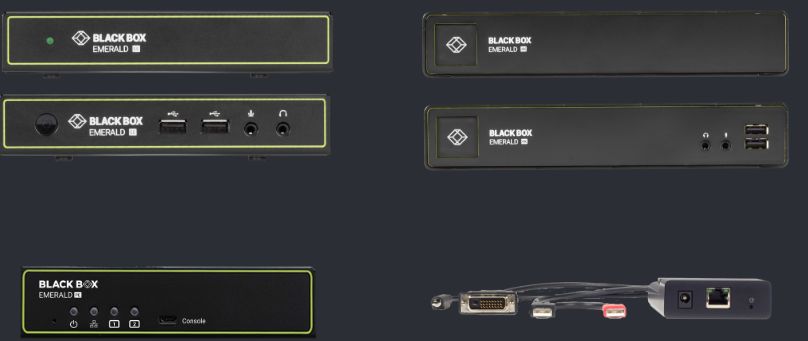

BlackBox EMD2000SE-R EMERALD SE, HD DVI, SINGLE HEAD,VUSB, AUDIO,RX

Emerald® SE DVI IP-based KVM Extender - Single-Head/Dual-Head, V-USB 2.0, Audio, Virtual Machine Access

Full HD KVM extension and switching for physical and virtual machines with IP-based CATx KVM connections.

Next-gen KVM extension and matrix switching simplify access to physical and virtual servers.
Virtually lossless Full HD DVI video up to 1920 x 1200.
Ultra-low IP bandwidth requirements with less than 40 Mbps for 1080p video.
Supports USB HID, transparent USB (2.0), and audio.
Transparent USB forwarding for both virtual and physical desktops.
Available with 4K DisplayPort video.
Use Emerald SE Extender Kits for point-to-point extension up to 100m or connect multiple units via an Emerald switch for powerful KVM matrix switching.
Allows multiple receivers/users to share a single source.
Enterprise management with simple configuration, centralized system monitoring, and enhanced security.
Connect multiple users and servers via IP.
Compatible with existing KVM systems such as DKM®, Agility®, Boxilla®, Emerald® 4K, and ControlBridge.
High reliability and security with simple deployment.
Warranty: 2-Year Double Diamond™ (Standard)

About Emerald® KVM:
Emerald® provides high-performance KVM extension and matrix switching for enterprises, delivering pixel-perfect video with Full HD or 4K/60 resolution over an IP network. The flexible and scalable system supports any number of workstations and servers and simplifies virtual access to physical and virtual servers. Administrators benefit from robust management features, offering enhanced security and reliable 24/7 operation.

Emerald networks are infinitely scalable by adding endpoints without the need for additional chassis or cards. With up to 32 endpoints, no additional KVM management appliance is required. For larger deployments, Boxilla® provides centralized management of the entire KVM network.

Emerald® SE:
Emerald SE delivers a seamless desktop experience over a TCP/IP network and supports both physical desktops and virtual machines. It enables point-to-point KVM extension up to 100m over CATx or matrix switching over IP connections.

Digital Video:

Emerald supports pixel-perfect Full HD DVI video up to 1920 x 1200 with visually lossless compression. It is future-proofed for 4K DisplayPort video, allowing for a gradual transition to higher resolutions.

Virtualization:

Emerald simplifies access to physical and virtual servers by supporting virtual machines from platforms such as VMware®, Microsoft®, and Citrix®.

System Management:

Manage Emerald matrix switching networks through the receiver’s OSD or Boxilla®, a browser-based centralized management platform.

Technical Data:

• Video: DVI-D up to 1920 x 1200
• Bandwidth: <40 Mbps for 1080p video
• Ports:
- Transmitter EMD2000SE-T: 1x DVI, 1x USB Type B, 1x RJ-45 network, 1x RJ-45 serial, 2x 3.5mm audio, 1x power
- Receiver EMD2000SE-R: 1x DVI, 4x USB Type A, 1x RJ-45 network, 1x DB9 serial, 2x 3.5mm audio, 1x power
- EMD2002SE models feature dual DVI connections

• Distance:
- CPU to transmitter: Max 5m (DVI/USB limitations)
- Transmitter to receiver: Max 100m over CATx cable

• Encryption: SSL 128-bit between transmitter and receiver
• Supported Operating Systems: Windows, Linux, Mac OS
• Power: External, 100–240 VAC, 50/60 Hz
• Operating Temperature: 0 to 40°C
• Dimensions: 137 x 154.2 x 33.6 mm
• Weight: 0.54 kg
• TAA compliant: Yes
