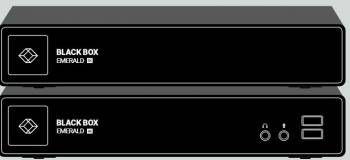

BlackBox EMD2000-RMK2 EMERALD PE 2 UNIT RACKMOUNT KIT

Emerald® SE DVI IP-based KVM Extender - Single-Head/Dual-Head, V-USB 2.0, Audio, Virtual Machine Access:

The Emerald® SE DVI IP-based KVM Extender offers full HD KVM extension and switching for physical and virtual machines over IP-based CATx KVM connections. This next-generation solution provides virtually lossless Full HD DVI video up to 1920 x 1200 and supports USB HID, Transparent USB (2.0), and audio. With ultra-low IP bandwidth requirements of less than 40 Mbps for 1080p videos, the extender is ideal for high-performance multimedia applications.

Features:

• Next-gen KVM extension and matrix switching for physical and virtual servers
• Full HD DVI video up to 1920 x 1200
• Low bandwidth requirements: <40 Mbps for 1080p videos
• Supports USB HID, Transparent USB (2.0), and audio
• Supports both virtual and physical desktop connections
• Expandable with 4K DisplayPort video
• Point-to-point extension over CATx up to 100 m or matrix switching via Emerald Switch
• Allows multiple receivers/users to access a single source simultaneously
• Easy configuration, centralized system overview, and enhanced security
• Compatible with DKM®, Agility®, Boxilla®, Emerald® 4K, and ControlBridge
• High reliability and security
• Warranty: 2-Year Double Diamond™ (Standard)

About IP-based Emerald® KVM:
Emerald® delivers pixel-perfect video in full HD or 4K/60 over IP networks. The system is flexible, scalable, and supports any number of workstations and servers, both physical and virtual. Users experience fast, premium video quality, while administrators benefit from comprehensive management and security options.

Emerald® SE:
Emerald SE offers a seamless desktop experience in a TCP/IP network and secures hardware in data centers or the cloud. It enables high-performance applications like video and image editing, as well as 3D design. Remote desktops can be hosted on physical or virtual PCs/workstations.

Network Requirements:

For full HD video, a Gigabit Ethernet network is required. Larger networks or 4K video may require a 10-Gigabit aggregation switch. The network infrastructure can be built using IEEE 802.3 standards.

Technical Data:

• Max Resolution: DVI-D up to 1920 x 1200
• Bandwidth Requirements: < 40 Mbps
• Connectors:
- Transmitter EMD2000SE-T: 1x DVI, 1x USB Type B, 1x RJ-45, 2x 3.5mm audio, 1x power jack
- Receiver EMD2000SE-R: 1x DVI, 4x USB Type A, 1x RJ-45, 2x 3.5mm audio, 1x power jack
- Transmitter EMD2002SE-T: 2x DVI, 1x USB Type B, 1x RJ-45, 2x 3.5mm audio, 1x power jack
- Receiver EMD2002SE-R: 2x DVI, 4x USB Type A, 1x RJ-45, 2x 3.5mm audio, 1x power jack

• Distance:
- Direct connection: Up to 100 m over CATx
- Over network switch: Extended range

• Power Supply: 100–240 VAC, external power supply, 6.5 W consumption
• Dimensions: 13.7 x 15.4 x 3.4 cm
• Weight: 0.54 kg
• Operating Temperature: 0 to 40°C
• Supported OS: Windows, Linux, Mac OS
• TAA Compliant: Yes
