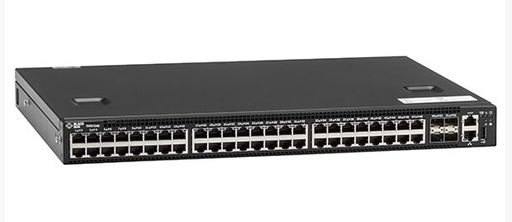

IP-based Emerald® KVM Matrix Switch, 1 GbE, 48-Port:

The IP-based Emerald® KVM Matrix Switch creates a fully customizable IP-based KVM switching matrix and extension system. This system connects all Emerald transmitters and receivers via an IP network and provides powerful non-blocking switching architecture with 260 Gbps full-duplex bandwidth. It supports jumbo frames, making it ideal for virtualized environments and IP storage/server communication.

Key Features:

• Compatible with all Emerald transmitters and receivers.
• Non-blocking switching architecture with 260 Gbps full-duplex.
• Includes 48x 10/100/1000 Mbps twisted-pair ports.
• 4x SFP+ 10 GbE uplink ports for maximum flexibility and investment protection.
• Redundant, hot-swappable power supplies and fans.
• Supports jumbo frames for virtualized environments.

The Emerald solution enables pixel-perfect video transmission with 2K/HD or 4K/60 resolution and 10-bit color depth over IP networks. The flexible system can support an unlimited number of workstations and servers, making it ideal for both virtual and physical access. Users enjoy high-quality video and extensive peripheral support (including stereo audio and up to four USB 2.0 devices with True Emulation).

Scalability:

Emerald networks are infinitely scalable. You can start small and expand by simply adding endpoints without the need for additional chassis or cards.

Video Quality:

Emerald offers the first KVM platform to support 4K DisplayPort video at 60 Hz with mathematically lossless compression over standard IP networks. It allows you to manage both HD and 4K content simultaneously with quick source switching.

Virtualization:

Emerald supports access to both physical and virtual servers with support for VMware, Microsoft, Citrix, and other platforms. The system simplifies access to RDP, RemoteFX, and PCoIP.

Reliability:

For fail-safe operation, the switch features redundant network ports. The switchover during network failures occurs seamlessly, ensuring continuous availability.

Management:

The system can be managed locally via the on-screen display or centrally via the Boxilla® KVM Manager. It offers efficient configuration options, user access rights, and alerts for unauthorized network activity.

Technical Data:

• Ports: 48x 1000BASE-T (RJ45), 4x 10GE SFP+ uplink ports
• Network Management: SNMPv1/2, SSHv2, FTP, Syslog, Port-Mirroring, RADIUS, 802.1X
• Performance:
- MAC addresses: Up to 80k
- Switch fabric capacity: 260 Gbps (full-duplex)
- IPv4 routes: 16K, IPv6 routes: 8K
- Latency: ~1.8 μsec for SFP+
- VLANs: 4K

• Dimensions: 1U, 44 mm (H) x 434 mm (W) x 320 mm (D)
• Weight: 5.84 kg
• Power Supply: 90–264 VAC, 50/60 Hz, redundant power supplies
• Operating Temperature: 0 to 45°C
• Certifications: CE, RoHS, UL/CSA 60950-1, FCC CFR 47 Part 15, Subpart B:2009, Class A
