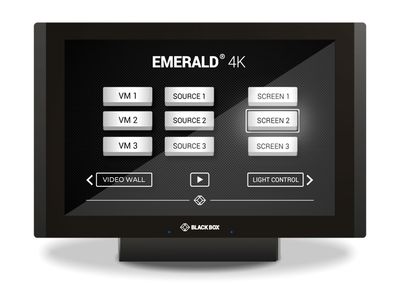

BlackBox CB-TOUCH7-T ControlBridge 17,8 cm ( 7 inch ) Wired Touch Panel Desk

Product Description:

The ControlBridge® touch panel is an elegant and versatile solution for managing systems in conference rooms, control rooms, and room automation. Featuring Ethernet IP capability, it can operate Ethernet-enabled devices on its own or be paired with a ControlBridge® processor for additional I/O control. This touch panel provides full integration of multimedia, presentation control, and management of lighting, window shades, and other room systems.

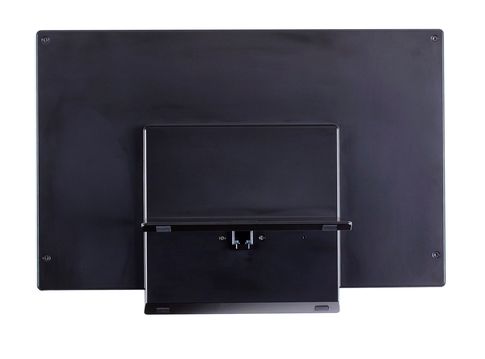

The active matrix touchscreen display, with a resolution of 1280 x 800 pixels, delivers stunning 32-bit True Color images. The Projected Capacitive Touch (PCT) technology ensures reliable performance in any environment, resistant to light interference. Its video preview function supports full-motion streaming or viewing of downloaded content. With Power-over-Ethernet (PoE), there’s no need for separate power cables. Its sleek design with a glass front and concealed cable management makes it an ideal tabletop solution.

Available in 7-inch and 12-inch sizes, the panel includes built-in light and proximity sensors that automatically adjust the backlighting. A built-in microphone and speaker enhance AV control capabilities. The panel is configured through a standard web browser, and the built-in real-time clock enables easy scheduling for applications.

Technical Specifications:

• Screen size: 7-inch or 12.1-inch diagonal
• Resolution: 1280 x 800 pixels
• Color depth: 32-bit True Color
• Touch technology: Projected Capacitive Touch (PCT)
• Video features: Streaming Video (MJPEG, H.264)
• Connectivity: Wired, 10/100BASE-T, RJ-45
• Power: PoE (IEEE 802.3af)
• Integrated sensors: Light and proximity sensors
• Audio: Built-in microphone and speaker
• Response time:
- 7-inch: 20 ms
- 12-inch: 15 ms

• Memory: 512 MB RAM, 8 GB MicroSD card
• Contrast ratio:
- 7-inch: 800:1
- 12-inch: 1000:1

• Viewing angle: ±80° horizontal, ±80° vertical
• White luminance: 400 cd/m²

Physical Specifications:

• Dimensions:
- 7-inch: 11.5 (H) x 19.9 (W) x 9.7 (D) cm
- 12-inch: 19.2 (H) x 32 (W) x 15.3 (D) cm

• Weight:
- 7-inch: 0.8 kg
- 12-inch: 2.4 kg


Environment:

• Operating temperature: 10°C to 40°C
• Storage temperature: 0°C to 60°C

Included Items:

• ControlBridge® touch panel (7-inch or 12-inch)
• PoE adapter
• User manual
