BlackBox AVU8011A Line powered DVI over CATx Extender

Your rating:
Average rating
product review for BlackBox AVU8011A Line powered DVI over CATx Extender
( 4.4 / 5 ) 33 ratings

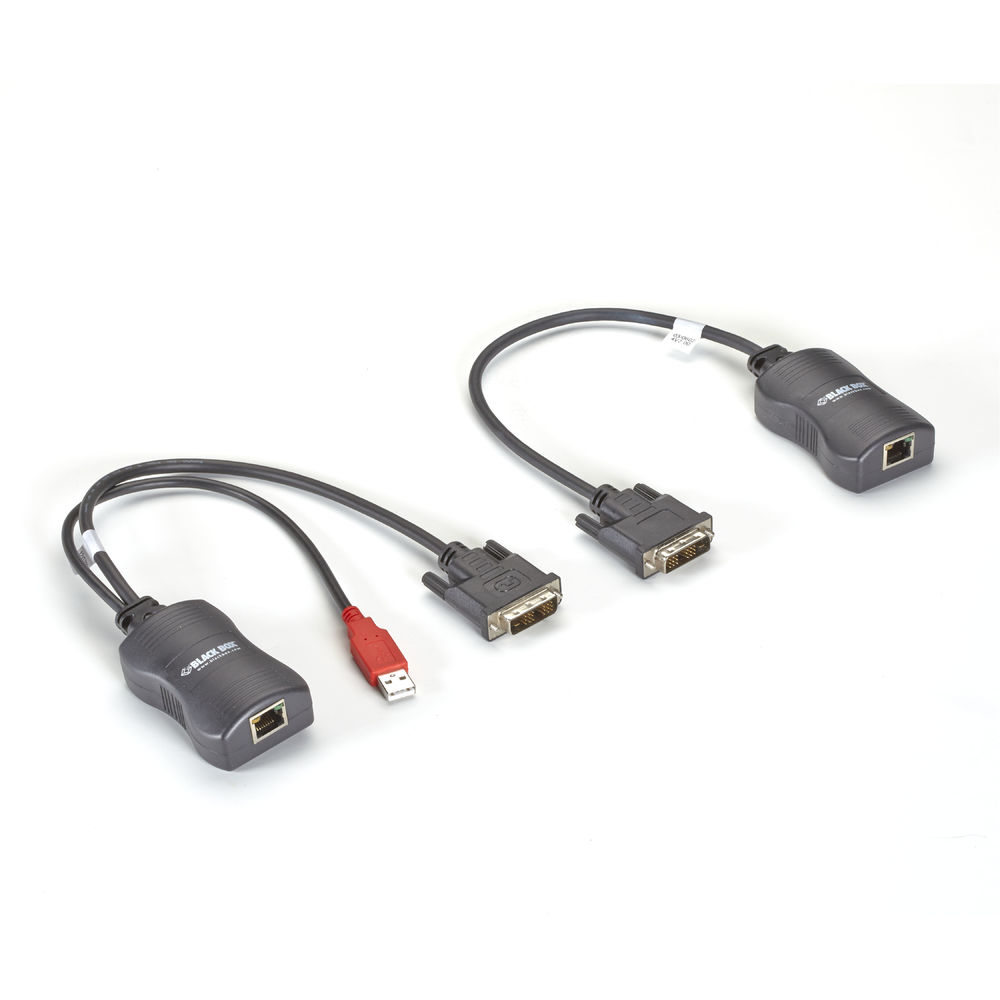

BlackBox AVU8011A
This image may differ from the desired article.
456,00 EUR
( 542,64 EUR incl. VAT )
≈ £381.67  |  ≈ $501.14
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 18 workdaysinfo_outline
1x BlackBox AVU8011A Line powered DVI over CATx Extender
Lieske Part No.:890247
Mfg Part No: AVU8011A
Weight:0.23 kg
Graduated prices net
From piecesPrice per pieces
4452,58 EUR
8449,16 EUR
12445,74 EUR
16442,32 EUR

Product information for BlackBox AVU8011A:

The Line-Powered Extender Kit from BlackBox enables the transmission of DVI video signals over a single shielded CATx cable to remote displays. The system is designed as a plug-and-play solution and becomes operational immediately after installation. It is intended for extending digital video transmissions without compression, ensuring sharp image quality with resolutions up to 1920x1200 at 60Hz. The maximum range is 50 meters, achieved via a single shielded twisted-pair cable of Category 6 or higher. The use of CAT6 or higher category is required to comply with high-frequency emission regulations and to ensure high immunity against electromagnetic interference.

DVI Transmission

The device supports uncompressed digital video transmission over DVI-D interface. It is designed for resolutions such as 480p, 720p, 1080p, and WUXGA (1920x1200) at 60Hz with 24-bit color depth, with Reduced Blanking enabled. Signal transmission occurs over a single CATx cable, simplifying cabling and reducing the number of required cables. The connection between transmitter and receiver is established exclusively via the CATx cable, without additional network components.

Smart EDID Management

An integrated Smart EDID Management ensures that aspect ratios and resolutions are maintained regardless of the display type used. This guarantees that the correct content is displayed properly, without requiring manual adjustments to the screen or transmitter settings. This is particularly advantageous when used with different monitor models that support varying EDID profiles.

Connectors and Connection

The transmitter features a DVI-D male connector and a USB Type A connector, used exclusively for power supply. The receiver also has a DVI-D male connector. The connectors are robust and latched to ensure a stable and reliable connection. Power supply is via USB at 5 VDC, with a total power consumption of 2.5 W for both units (transmitter and receiver). The units are compact, measuring 2 cm height, 6.4 cm depth, and 4.6 cm width. The attached pigtails have a length of 30 cm.

Compatibility and Applications

The system is compatible with all computers equipped with DVI-D and USB connectors. Usage is independent of specific hardware configurations, as long as the required interfaces are available. The maximum range of 50 meters is achieved with continuous cabling. Each interruption or patch connection reduces the maximum distance by 5 meters. Patch cables should, if possible, be less than 2 meters long and of CAT7 type. For patch cables longer than 2 meters, the use of CAT7 cables is mandatory.

Operation and Environmental Conditions

The device is designed for operation in environments with temperatures from 0 to 40°C. The units are developed for long service life and offer reliability, durability, and performance. The warranty is 3 years under the Double Diamond™ program. Certifications include CE, FCC, and RoHS2, confirming compliance with European and American standards.

Operational Advantages

Using the Extender Kit reduces the number of required cables and simplifies installation. The plug-and-play functionality enables quick setup without additional configuration. Uncompressed signal transmission ensures high image quality, and Smart EDID Management guarantees correct display regardless of the monitor. Power supply via USB reduces the need for additional power adapters and simplifies unit power supply.

Technical Explanation

Transmission occurs over a single CATx cable, carrying both video and control data. The system uses the cable’s signal lines to transmit DVI-D signals, with power supplied via the USB connector. The use of shielded cable ensures low interference and high signal integrity. The maximum range of 50 meters is only achieved with uninterrupted cabling; each patch connection or interruption reduces the range by 5 meters. The units are compact and lightweight, weighing 0.27 kg per pair, facilitating mounting and placement.

Installation and Mounting

Installation is performed by directly connecting the transmitter to the computer and the receiver to the monitor via a single shielded CATx cable. Power supply is via USB, with the transmitter powered through the USB port on the computer. The units are designed for easy installation, requiring no additional tools or configuration. The robust, latched connectors ensure a stable connection, even with frequent plugging and unplugging.

Compatibility and Accessories

The system is compatible with all computers equipped with DVI-D and USB connectors. It is not designed for specific brands or models, but works with any hardware that provides the required interfaces. The use of CAT6 or higher category is required to ensure signal quality and maximum range. The units do not include additional accessories such as cables, adapters, or power supplies, except for the 30 cm pigtails already mounted on the units.

Operational Advantages

Uncompressed signal transmission ensures high image quality, and Smart EDID Management guarantees correct display regardless of the monitor. Power supply via USB reduces the need for additional power adapters and simplifies unit power supply. Plug-and-play functionality enables quick setup without additional configuration. Robust, latched connectors ensure a stable connection, even with frequent plugging and unplugging. The units are compact and lightweight, facilitating mounting and placement.

General
Transmission range50 m
Maximum resolution1920x1200 px
Frame rate60 Hz
Colour depth24 Bit
InterfaceDVI-D male
Current supplyUSB 5 VDC
Total power2,5 W
Operation temperature0 to 40 °C
ApprovalsCE, FCC, RoHS2 -
Transmitter connectionDVI-D male, USB Type A -
Receiver connectionDVI-D male -
Cable typeShielded twisted-pair cable Category 6 or better
Pigtail length30 cm
EDID managementSmart -
Warranty3 years Double Diamond™


Questions & answers

What is the delivery time of BlackBox AVU8011A Line powered DVI over CATx Extender?

The article BlackBox AVU8011A Line powered DVI over CATx Extender is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 18 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of BlackBox AVU8011A to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you BlackBox AVU8011A Line powered DVI over CATx Extender always at the best possible price. We can give you a discount of 2% on BlackBox AVU8011A Line powered DVI over CATx Extender if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of BlackBox AVU8011A Line powered DVI over CATx Extender we can offer you a price of 452,58 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
