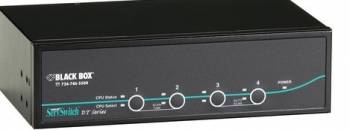

BlackBox AVSP-RMK RACK MOUNT KIT FOR 4 PORT HDMI & DVI-D SPLITTERS

Desktop switching with high-quality DVI-D video:

The ServSwitch DT DVI-I series supports the full DVI single-link specification, enabling operation at resolutions up to 1920x1200 at 60 Hz. Special circuits in the switch allow fine-tuning of signals based on signal strength.

Transparent USB 2.0:

The KV9604A combines DVI-D and audio signal switching with transparent USB 2.0 signals. Switching is done via buttons on the front of the switch. Up to four USB peripherals can be connected via the built-in USB hub.

Emulated USB for keyboard and mouse:

If you prefer to switch using hotkeys, the KV9612A or KV9614A models are the right choice. These KVM switches support an emulated USB channel for a USB keyboard and up to three USB 2.0 channels for transparent USB 2.0 devices like a mouse, DVD burner, USB printer, etc.

Stereo audio support:

All models transmit stereo audio for connecting speakers and microphones. The audio channels can be switched independently from the USB and video channels.

Specifications:

Connections:
KV9612A:
(3) DVI-I sockets,
(2) USB Type B sockets,
(4) USB Type A sockets,
(6) 3.5-mm audio jacks,
(1) barrel power connector.
KV9604A/KV9614A:
(5) DVI-I sockets,
(4) USB Type B sockets,
(4) USB Type A sockets,
(10) 3.5-mm audio jacks,
(1) barrel power connector.

Video:

2-Port – DVI-I connection for DVI-D only;
4-Port – DVI-I connection for DVI-D or VGA.

Indicators:

(4) LEDs for active port,
(4) LEDs for port selection.

Control:

(3) or (5) buttons on the front of the housing.

Power supply:

External power supply, 100 to 240 VAC / 9-12 VDC.

Dimensions:

KV9604A/KV9614A: 4.4 H x 22 W x 13 D cm,
KV9612A: 15.87 H x 9.84 W x 3.81 D cm.

Weight:

KV9612A: 0.7 kg,
KV9604A and KV9614A: 0.9 kg.

TAA compliant: YES.
