BlackBox AVS-CTRL8
Wallplate Control Panel - 8-button, RS-232
|
315,84 EUR |
|||||||||||
|
( 375,85 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |||||||||||
| In Stock: >10 pieces | |||||||||||
| Lieske Part No.: | 891216 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | AVS-CTRL8 | ||||||||||
| UPC/EAN: | 00822088122883 | ||||||||||
| Weight: | 0.68 kg | ||||||||||
|
Graduated prices net
|
|||||||||||

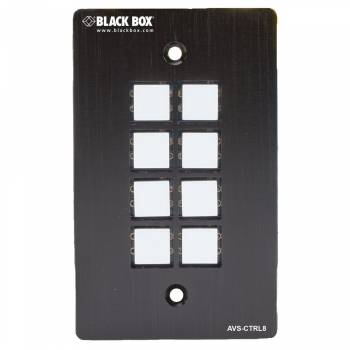

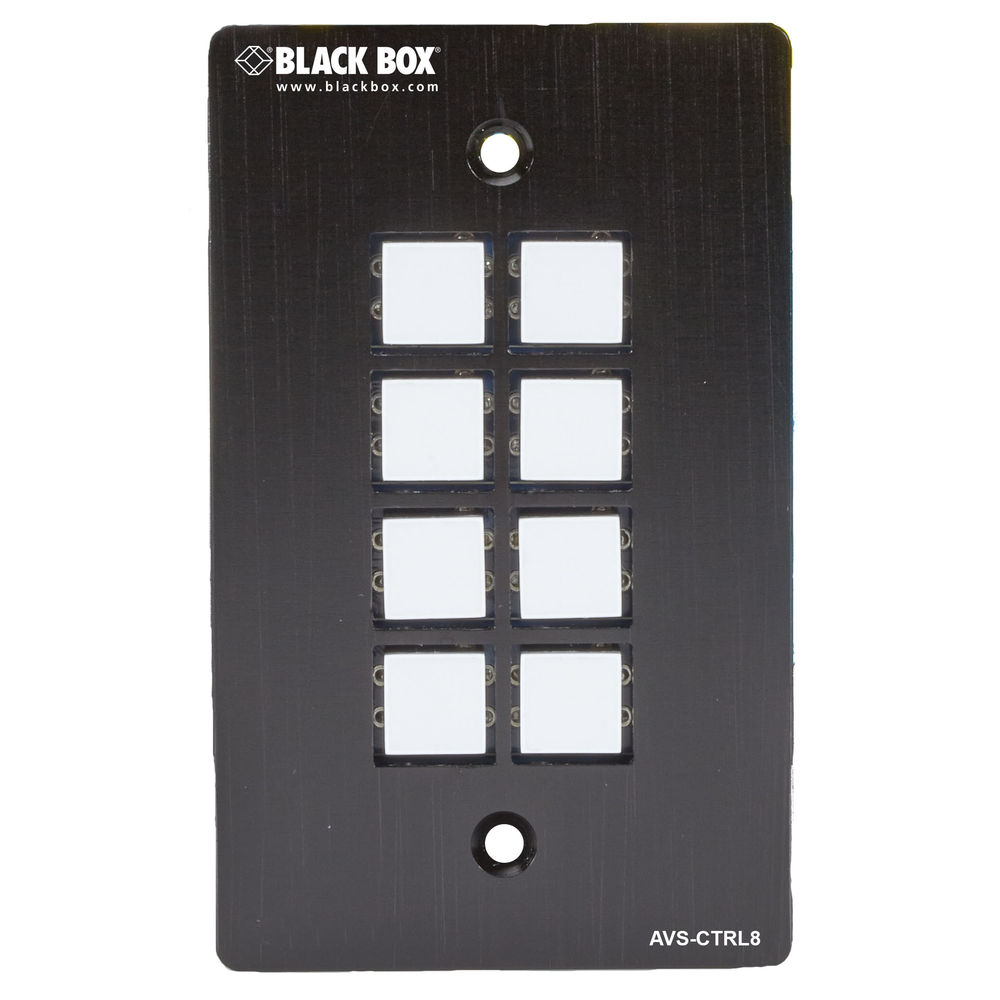

Product information for BlackBox AVS-CTRL8:
AV control panel for wall or desk mounting.
Designed for controlling AV, KVM switches, scalers with RS-232 control, or other AV devices via RS-232, RS-485, IR, or relay control. Equipped with 8 backlit buttons (adjustable brightness), each fully programmable for functions such as powering a display on/off, selecting channels, or switching inputs on a matrix switcher. Supports IR learning, page, toggle, compare, and delay settings. The button labels are customizable and replaceable. Easy to program with the included software. Warranty: 3 years Double Diamond™ (standard).
Technical Specifications:
8 Programmable Buttons:
- Each button can be individually programmed to send IR, relay control, or bidirectional RS-232 and RS-485 signals.
Sleek Black Metal Wall Plate Design:
- The wall plate features a sturdy black metal design with backlit LED buttons. Fits into a standard US single-gang electrical box.Additional Features:
- ID looping function: Up to 99 panels can be linked and controlled together.- Supports page, toggle, compare, and delay settings.
- Backlight brightness is adjustable.
- Customizable and replaceable labels.
Environment:
- Operating temperature: -20 to 70°C- Storage temperature: -20 to 70°C
- Humidity: 10 to 90%, non-condensing
Interfaces:
- Programming port: USB or RS-232- Serial control port: RS-232
- Baud rate: 9600 baud, 8 data bits, 1 stop bit, no parity
- Frequency response: 20 Hz to 20 kHz
Power:
- Power supply: 100 to 240 VAC, 50/60 Hz- Power consumption: 1 W
Dimensions:
- Standard US single-gang box: 2.8 H x 7 W x 11.4 D cmWeight:
- 0.15 kgMounting options: Fits standard US single-gang boxes or can be desk mounted. Please contact our technical support for any mounting inquiries.
