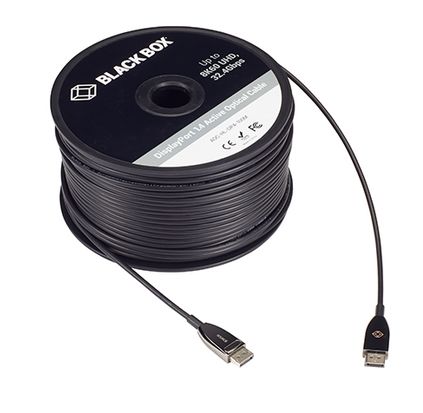

BlackBox AOC-HL-DP4-100M DISPLAYPORT 1.4 ACTIVE OPTICAL CABLE, 100M

DisplayPort 1.4 Active Optical Cable, LSZH

Error-free transmission of 8K60 DisplayPort video signals over distances up to 200 meters

• Supports DisplayPort 1.4 (Source) at input and DisplayPort 1.4 (Display) at output.
• Video resolutions up to 7680 x 4320 (8K) @ 60Hz 4:2:0 over the full 200m distance.
• Ultra-high bandwidth data transfer up to 32.4 Gbps.
• PCM, DTS-HD Master and Dolby Digital True HD Surround Sound compatible.
• Virtually no EMI/RFI profile for flawless performance.
• Supports DisplayPort 1.4 spec, including DPCP, 32.4 Gbps bandwidth, HDCP 2.2/EDID/CEC/DDC.
• High Dynamic Range (HDR) video for superb contrast ratio and color accuracy.
• Supports dual video streams on one display (if supported).
• 21:9 cinema aspect ratio.
• Supports BT.2020 color metric.
• Hybrid fiber/copper design requires no external power.
• Locking connectors prevent accidental disconnections.
• Plug and Play, no software required.
• Ultra-thin, flexible cabling makes it easy to route through tight spaces.
• Triple shielding protects against interference, ensuring optimal signal quality.
• Warranty: 3 years Double Diamond™ (Standard).

High Bandwidth for UHD Transmission Over Long Distances:

Active optical cables (AOCs) with fiber optic technology support ultra-high bandwidth signals up to 200 meters, outperforming copper cables. Copper struggles at 4K60, but AOCs handle DisplayPort 1.4's 32.4 Gbps bandwidth over long distances with ease.

Superior Video Quality:

AOCs support 8K @ 60Hz 4:2:0 video resolutions with the full functionality of DisplayPort 1.4. HDR video delivers optimal color accuracy, and BT.2020 color metric and 21:9 cinema aspect ratio are supported.

Stunning Audio Quality:

Supports PCM, DTS-HD, and Dolby Digital True HD Surround Sound for immersive audio experiences. Transmits up to 32 audio channels with a 1536 KHz sampling rate.

Plug and Play:

No software, external power, or extra hardware required. AOCs are easy to install and highly reliable, without the complexity of video extender kits.

Flexible, Thin, and Lightweight:
At just 4.8 mm in diameter, AOCs are much thinner and more flexible than copper cables, making them ideal for tight spaces or behind displays. They're also lightweight, reducing installation effort and potential damage.

Minimal RFI/EMI Profile:
AOCs have a much lower susceptibility to electromagnetic interference (EMI/RFI) than copper cables, making them ideal for sensitive applications like control rooms and healthcare. Triple shielding protects against interference for optimal signal quality.

Certifications — CE, FCC, RoHS2

Connectors —

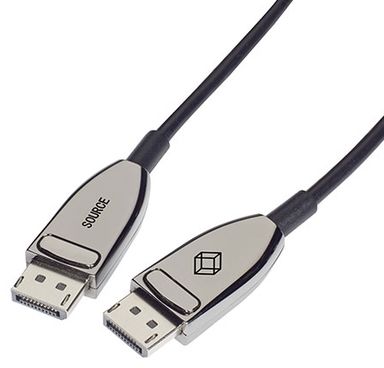

(1) Nickel-plated DisplayPort plug on both ends
Connector width: 21.28 mm

Video Specifications —

• DisplayPort 1.4
• HDCP 2.2
• Video resolution (max.): 7680 x 4320 (8K) @ 60Hz (4:2:0)
• Maximum color depth: 30/36/48-bit Deep Color, 48-bit
• Bandwidth: 32.4 Gbps

Cable Type —

• Hybrid fiber/copper design
• Fiber core: 50-micron multimode OM3
• Jacket: Low-smoke, zero-halogen (LSZH)
• Outer diameter: 4.8mm
• Tensile strength: 5 kg
• Pulling strength: 200N
• Bend radius: 10 x OD

MTBF — 144,717,800 hours

Temperature Range —

• Operating temperature: 0° to 70° C
• Storage temperature: -10° to 70° C

Humidity —

• Operating humidity: 10% to 85% RH, non-condensing
• Storage humidity: 5% to 89% RH, non-condensing

Power Consumption — 250 mw
