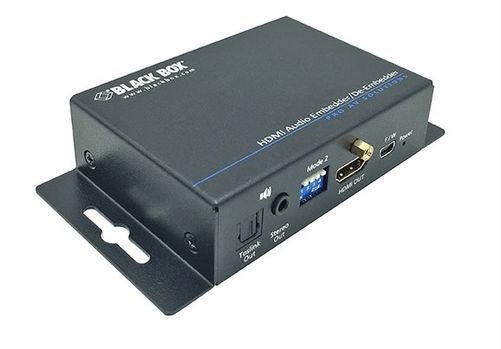

BlackBox AEMEX-HDMI-R2 AUDIO EMBEDDER AND DE-EMBEDDER, HDMI 2.0

Audio Embedder/De-Embedder - HDMI 2.0:

The ultimate solution for HDMI audio issues:

• 2-in-1 solution.
• With embedded audio, you can add audio signals to a video signal or extract them from an HDMI signal.
• Supports HDMI 2.0 with 4K60 video.
• Compatible with HDCP 2.2.
• Supports audio embedding or extraction via an analog stereo signal or digital TOSLINK.
• Supports ARC audio extraction via TOSLINK.
• Supports HDMI, analog 3.5 mm audio, and optical TOSLINK audio inputs and outputs.
• Supports resolutions up to 4K at 60 Hz in 4:4:4 color sampling.
• Embeds audio from a 3.5 mm source or optical source into an HDMI or DVI-D signal.
• Create audio channels even where none existed before.
• Extract audio from an HDMI signal and output it to analog 3.5 mm or digital optical sound systems.
• Audio de-embedding is possible without being connected to an HDMI display.
• Supports simultaneous embedding and de-embedding.
• Controlled via simple DIP switch configuration.
• Warranty: 3 years Double Diamond™ (standard).

Certifications —
CE, FCC, RoHS2, WEEE, UL

Audio Support —

• Supports HDMI, analog 3.5 mm audio, optical TOSLINK audio inputs and outputs
• Embeds audio from a 3.5 mm source or optical source into an HDMI or DVI-D signal

Connections —
Input:

• (1) locking barrel connector
• (1) USB Mini for power and firmware upgrades
• (1) HDMI
• (1) analog 3.5 mm audio input
• (1) digital optical audio input

Output:

• (1) HDMI
• (1) analog 3.5 mm audio output
• (1) digital optical audio output

Environment —

• Operating temperature: 0 to 40°C
• Storage temperature: -20 to 60°C
• Humidity: 20 to 90%, non-condensing
• Altitude: maximum 3125 m

Material — Housing: metal

ESD Protection —

• Human Body Model: ±19 kV (air-gap discharge) and ±12 kV (contact discharge)
• Core chipset: ±2 kV

PCB Stackup — 4-layer PCB (trace impedance: differential pair 100 Ohm, single-ended 50 Ohm)

Power Supply —

• Wall-wart style
• Input: 100-240 VAC, 50/60 Hz, 0.58 A
• Output: 5 VDC, 4 A locking barrel connector

Resolution — 4K at 60 Hz 4:4:4

Controls —

• (1) 2-position DIP switch
• (1) 4-position DIP switch

Video Bandwidth — Single-link 594 MHz (18 Gbps)

Video Support — Up to 4K at 60 Hz in 4:4:4 color sampling

Dimensions —

• 2.61 (H) x 9.49 (W) x 6.62 (D) cm

Weight — 0.26 kg

NOTE:

• To extract audio without using an HDMI output, the device must be powered on without the HDMI out connected.
• If powered on with HDMI out connected and then disconnected, the audio signal will drop.

TAA-compliant — Yes
