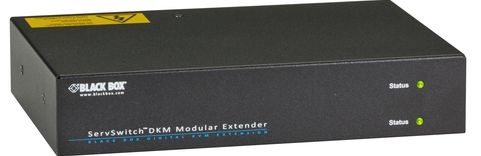

BlackBox ACXMODH6BPAC-R2-SHIP DKM MODULAR KVM EXTENDER HOUSING, 6 SLOT, MARITIME USE

Modular chassis for KVM extenders - with integrated power supply for maritime applications:

• The chassis has undergone rigorous testing for safety and environmental influences (vibration, humidity, and extreme conditions).
• Designed specifically for use in a protected area, such as the bridge.
• Applications vary from marine control rooms to access radar and GPS systems in multi-bridge control stations.
• The chassis can hold two (2) transmitter cards and has two rear-mounted internal power supplies. Additional power supply available as an option.
• Part of the DKM FX HD video and peripheral matrix switch system, consisting of transmitter and receiver interface cards and chassis.
• Supports (2) transmitter or receiver cards.
• Includes an internal 3 A power supply.
• Can be mounted to the chassis using ACXMODHEAR2 rack mount ears (48,3 cm ( 19 inch ) 1U).
• Warranty: 2 years Double Diamond™ (Standard).

Technical Data:

• Certifications: IEC 60945, EMC emissions (EN55022 Class B), EN61000-3-2-3, EN60950-1, RoHS2, UL60950-1, WEEE.
• Computer interface: Depending on modular cards.
• Ports:
- (1) 2.5 mm power jack.
- (1) IEC320, C14.

• Dimensions: 4.3 x 22.2 x 14.6 cm.
• Distance: Up to 140 m with CATx cable, 10,000 m with singlemode fiber, 1000 m with multimode fiber (OM3).
• Operating humidity: 20 to 90%, non-condensing.
• Operating temperature: -20°C to 70°C.
• Power: Internal power supply; input: 100-240 VAC, 50/60 Hz; output: 5 VDC, 3 A.
• Weight: 0.36 kg; shipping weight: 2.2 kg.
• TAA-compliant: YES.
