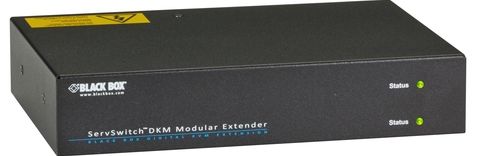

BlackBox ACXMODH2R-P-R2-SHIP DKM MODULAR KVM EXTENDER HOUSING, 2 SLOT, MARITIME USE

Modular Enclosure for KVM Extenders - with Integrated Power Supply for Maritime Applications:

The enclosure meets the IEC 60945 standard for maritime applications.

• The enclosure has undergone rigorous testing for safety and environmental impacts (vibrations, humidity, and extreme conditions).
• Specially designed for use in protected areas such as the bridge.
• Applications range from maritime control rooms to access to radar and GPS systems in multi-bridge control stations.
• The enclosure can hold two (2) transmitter cards and has two rear-mounted internal power supplies. Additional power supply available as an option.
• Part of the DKM FX HD Video and Peripheral Matrix Switch System, consisting of transmitter and receiver interface cards and enclosures.
• Supports (2) transmitter or receiver cards.
• Includes an internal 3 A power supply.
• Can be mounted to a chassis using rack mount ears ACXMODHEAR2 (48,3 cm ( 19 inch ) 1U).
• Warranty: 2 years Double Diamond™ (standard).

The DKM HD Video and Peripheral Matrix Switch System, certified for maritime use, consists of a modular chassis with two or six slots and transmitter and receiver interface cards certified for maritime use. The DKM extender configuration offers the greatest variety of combinations, enabling easy customization. This enclosure is part of a modular system. Please contact Black Box to configure your system to suit your application. To configure your DKM HD video and peripheral matrix switch setup, please call our FREE tech support.

• Two certified enclosures for maritime use are available: for two or six cards.
• Supports an external power supply.
• The 2-slot chassis holds up to (2) modular cards in a 48,3 cm ( 19 inch ) rack-mount chassis for DKM and includes internal power supplies (5 VDC, 3 A).
• It can be rack-mounted using ACXMODH-RMK and the rack-mount ears for the chassis (ACXMODHEAR-2).

Certifications:

• EMC Emissions (complies with EN55022 (CISPR22) Class B, EN61000-3-2-3).
• EMC Immunity (complies with EN61000-4-2, 3, 4, 5, 6, 8, 11kk, for light industry, criterion A).
• TÜV (EN60950-1), RoHS2, UL (60950-1), WEEE, IEC 60945.

Technical Data:

Connections:

• (1) 2.5 mm DC jack for power
• (1) IEC320, C14

Dimensions:

• 4.3 x 22.2 x 14.6 cm

Distance:

• Between Transceiver (Transmitter-Receiver) and Receiver: 140 m with a solid conductor (CATx cable);
• 70 m with a stranded conductor (CATx cable);
• 10,000 m with a 9µm single-mode fiber optic cable;
• 1000 m with a 50µm multimode (OM3) cable;
• 400 mm with a 50µm multimode cable;
• 200 m with a 62.5µm multimode cable.
• Using multimode fiber optic cables with single-mode transmitter and receiver modules typically doubles the maximum cable length allowed.

LED Indicators:

• None

Operating Humidity:

• 20 to 90%, non-condensing

Operating System:

• Dependent on modular cards

Operating Temperature:

• -20°C to 70°C

Power:

• Internal power supply;
• Input voltage: 100-240 VAC, 50/60 Hz;
• Input current: 0.7 A;
• Output voltage: 5 VDC;
• Output current: 3 A;
• Consumption: 15 Watts;
• MTBF (Mean Time Between Failures): 400,000 hours

User Interface:

• None

Weight:

• 0.36 kg;
• Shipping weight: 2.2 kg

TAA-compliant: YES
