BlackBox ACXIO8-6G
I/O module for DKM FX switches, 8) SFP slots for SDI video and USB 3.0
|
1.368,00 EUR |
|
|
( 1.627,92 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: 1 pieces | |
| Lieske Part No.: | 100881 |
|---|---|
| Mfg Part No: | ACXIO8-6G |
| UPC/EAN: | 00822088002840 |
| Weight: | 0.31 kg |
Product information for BlackBox ACXIO8-6G:

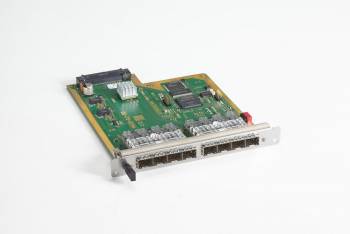

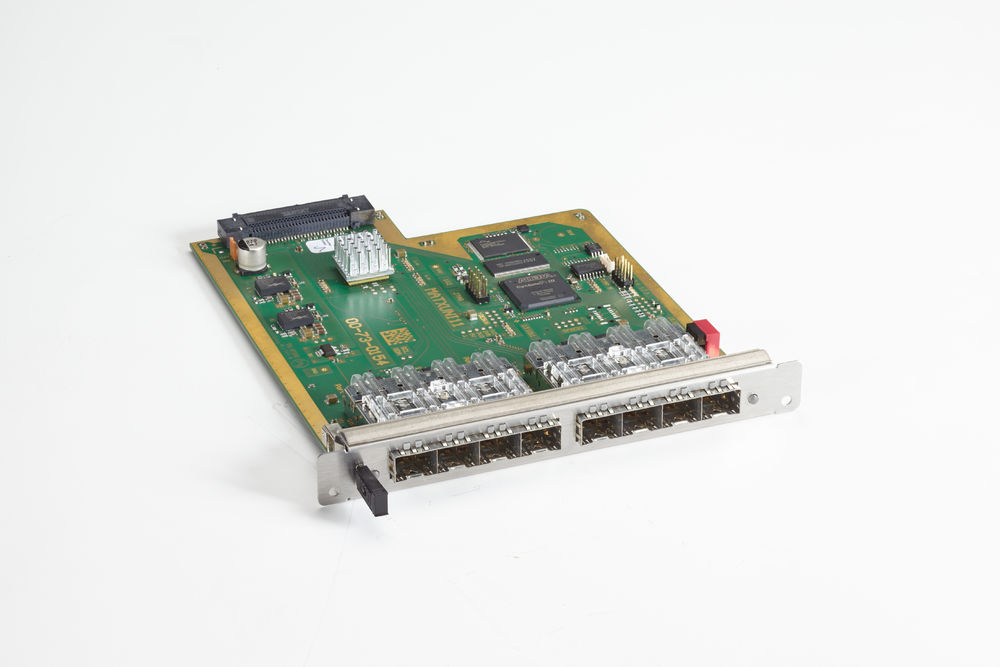

Add eight input/output ports to one slot in your KVM FX switch chassis. The ServSwitch DKM FX I/O module installs in a DKM FX switch chassis, providing 8 input/output ports. Choose between CATx, fiber, or flexible SFP connections. LEDs indicate the module's operational status and each port's connection status. With enhanced memory and faster firmware, more efficient upgrades are possible. This module reduces wiring costs and complexity, especially when multiple DKM FX chassis are cascaded together. It includes an 8-port SFP transceiver with duplex LC connectors. The warranty is 2 years Double Diamond™ (standard).
I/O modules offer a flexible way to equip your ServSwitch DKM FX with user and computer connections. You can mix and match fiber, CATx, and SDI ports via these cards and SFPs. Options include:
- CATx I/O module with 8 RJ45 ports,
- Fiber I/O modules with 8 SFP transceiver ports (duplex LC),
- SFP I/O module with 8 empty SFP slots for maximum flexibility,
- SDI I/O module for SDI, HD-SDI, or 3G-SDI connections.
The switch's design allows you to configure it as needed. First, select a chassis depending on the number of users and computers. Then, choose I/O modules according to your cable media and distances. Finally, select extender units for each connected computer and user.
The ServSwitch DKM FX supports high-definition KVM switching with little to no video delay. Supporting DVI, VGA, and various peripherals such as USB HID, USB 2.0, RS-232, and Wacom® tablets, the system is ideal for corporate networks, control rooms, video production, and broadcasting applications.
Technical Data:
- Ports: - ACXI08-C: (8) RJ-45 (1000BASE-TX)
- Distances: - CATx: up to 140 m
- Compatibility: Windows, MAC, Linux/Unix
- Management: OSD, Java tool, serial interface
- Power supply: Dual power supplies (except smaller models)
- Dimensions: - Module size: 1,9 cm ( 0,8 inch ) H x 14,7 cm ( 5,8 inch ) W x 19,1 cm ( 7,5 inch ) D (1.9 x 14.7 x 19 cm)
- ServSwitch DKM FX I/O Module (model-specific)
- User manual
- Power cable
- ACXI08-SM: (8) Duplex-LC (1000BASE-FX)
- SFP Module: (8) empty SFP ports
- Fiber: up to 10 km (single-mode), up to 1 km (multimode)
- SDI: up to 100 m over coax cable
Included Items:
Questions & answers
What is the delivery time of BlackBox ACXIO8-6G I/O module for DKM FX switches, 8) SFP slots for SDI video and USB 3.0?
The article BlackBox ACXIO8-6G I/O module for DKM FX switches, 8) SFP slots for SDI video and USB 3.0 is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of BlackBox ACXIO8-6G to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you BlackBox ACXIO8-6G I/O module for DKM FX switches, 8) SFP slots for SDI video and USB 3.0 always at the best possible price. We can give you a discount of 2% on BlackBox ACXIO8-6G I/O module for DKM FX switches, 8) SFP slots for SDI video and USB 3.0 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
